2000-2001 S3/S3T Thunderbolt Parts Catalog
2001

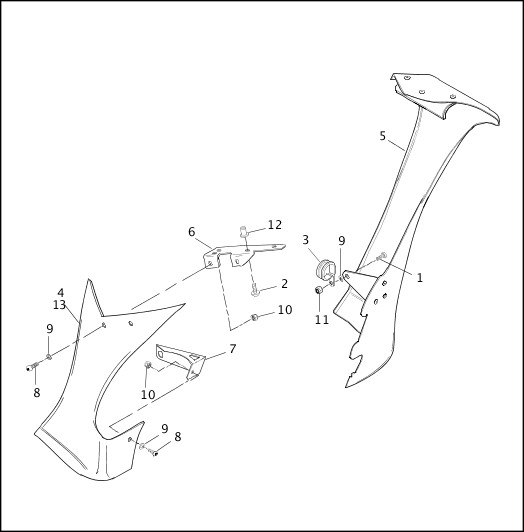

FAIRING LOWERS
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0406.3CSS | SCREW | S3T 2000, S3T 2001 | Mar 2013 |
| 2 | AA0406.3CBL | SCREW (2) | S3T 2000, S3T 2001 | Oct 2013 |
| 3 | C0529.M | CLAMP | S3T 2000, S3T 2001 | Feb 2017 |
| 4 | M1001.BAPMD | FAIRING LOWER, right (primed) | S3T 2000, S3T 2001 | |
| Z0712.MPMD | FAIRING LOWER KIT, right, w/ 2, 3, 4, 5, 7, 11 & 12 (primed) | S3T 2000, S3T 2001 | Feb 2010 |
|
| 58742-99YYA | FAIRING LOWER KIT, right, w/ 2, 3, 4, 5, 7, 11 & 12 (billet metallic) (use Z0712.MPMD) | S3T 2000 | ||
| 58742-99YYB | FAIRING LOWER KIT, right, w/ 2, 3, 4, 5, 7, 11 & 12 (carbon black) (use Z0712.MPMD) | S3T 2000, S3T 2001 | ||
| 58742-99YYD | FAIRING LOWER KIT, right, w/ 2, 3, 4, 5, 7, 11 & 12 (blue streak) (use Z0712.MPMD) | S3T 2001 | ||
| 58742-99YYE | FAIRING LOWER KIT, right, w/ 2, 3, 4, 5, 7, 11 & 12 (amazon green) (use Z0712.MPMD) | S3T 2000 | ||
| 58742-99YYU | FAIRING LOWER KIT, right, w/ 2, 3, 4, 5, 7, 11 & 12 (reactor yellow) (use Z0712.MPMD) | S3T 2001 | ||
| 58742-99YYX | FAIRING LOWER KIT, right, w/ 2, 3, 4, 5, 7, 11 & 12 (demon blue) (use Z0712.MPMD) | S3T 2000 | ||
| Z0712.01A6YAT | FAIRING LOWER, right, w/ 2, 3, 4, 5, 7, 11 & 12 (volcano gray) (use Z0712.MPMD) (Domestic) | S3T 2001 | ||
| 5 | Z0714.MPMD | FAIRING LOWER, left (primed) | S3T 2000, S3T 2001 | Mar 2010 |
| 58741-99YYA | FAIRING LOWER KIT, left, w/ 1, 4, 6 & 8 (billet metallic) (use Z0714.MPMD) | S3T 2000 | ||
| 58741-99YYB | FAIRING LOWER KIT, left, w/ 1, 4, 6 & 8 (carbon black) (use Z0714.MPMD) | S3T 2000, S3T 2001 | ||
| 58741-99YYD | FAIRING LOWER KIT, left, w/ 1, 4, 6 & 8 (blue streak) (use Z0714.MPMD) | S3T 2001 | ||
| 58741-99YYE | FAIRING LOWER KIT, left, w/ 1, 4, 6 & 8 (amazon green) (use Z0714.MPMD) | S3T 2000 | ||
| 58741-99YYU | FAIRING LOWER KIT, left, w/ 1, 4, 6 & 8 (reactor yellow) (use Z0714.MPMD) | S3T 2001 | ||
| 58741-99YYX | FAIRING LOWER KIT, left, w/ 1, 4, 6 & 8 (demon blue) (use Z0714.MPMD) | S3T 2000 | ||
| Z0714.01A6YAT | FAIRING LOWER, left, w/ 1, 4, 6 & 8 (volcano gray) (use Z0714.MPMD) | S3T 2001 | ||
| 6 | M0532.M | BRACKET, upper right | S3T 2000, S3T 2001 | Jun 2010 |
| 7 | M1533.MA | BRACKET, lower right | S3T 2000, S3T 2001 | Sep 2010 |
| 8 | AA0406.11CVB | SCREW (3) | S3T 2000, S3T 2001 | |
| 9 | BA0409.6BL | WASHER (4) | S3T 2000, S3T 2001 | |
| 10 | DA0400.2CZ | LOCKNUT (3) | S3T 2000, S3T 2001 | |
| 11 | DA0400.3CZ | LOCKNUT | S3T 2000, S3T 2001 | |
| 12 | M0705.3 | WELL-NUT (2) | S3T 2000, S3T 2001 | |
| 13 | Z0713.MPMD | FAIRING LOWER, right, w/ 2, 3, 4, 5, 7, 11 & 12 (volcano gray) (Japan) | S3T 2001 | Feb 2010 |
