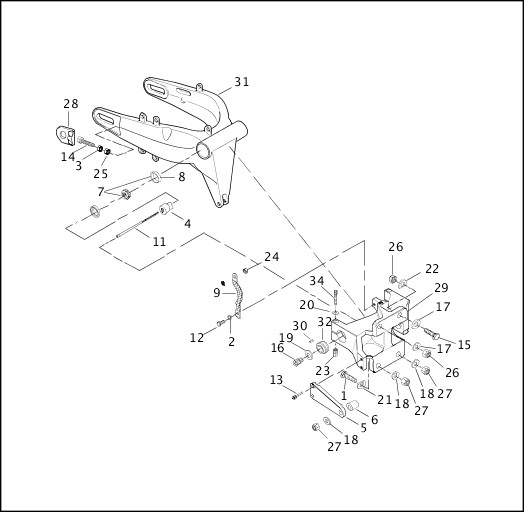

Index No.	Part No.	Description	Models	Obselete
1	3269Y	BOLT (2)	ALL	Apr 2010
2	6161Y	LOCKWASHER	ALL	Feb 2010
3	7758Y	JAMNUT, axle adjustment (2)	ALL	Feb 2010
4	47743-97Y	ADJUSTING BOLT, bearing, right	ALL
	47685-97Y	ADJUSTING BOLT, bearing, left	ALL
5	47954-97Y	SWINGARM/DRIVE SUPPORT	ALL
6	47955-97Y	SPACER	ALL
7	48300-60	ROLLER BEARING, w/ cup (2)	ALL
8	48315-60	BEARING CUP (2)	ALL
9	70186-82	GROUND STRAP	ALL
10	AA0406.1CZ	SCREW, mounting, brake line (not illustrated)	ALL
11	AA0460.2CBZ	BOLT	ALL	Feb 2010
12	AA0506.1CZ	BOLT	ALL
13	AA0508.2CZB	SCREW (2)	ALL	Feb 2017
14	AA0522.9FZ	SCREW, adjuster, rear axle (2)	ALL	Oct 2013
15	AA0714.1CZ	BOLT (2)	ALL
16	AA1006.10FKZB	SCREW (2)	ALL	Nov 2014
17	BA0714.2Z	WASHER (2)	ALL
18	BA0817.2Z	WASHER (3)	ALL	Feb 2010
19	BA1016.1WZ	WASHER (2)	ALL	Nov 2014
20	CB0002.T	WASHER (2)	ALL
21	CB0048.8	WASHER, ""D"" shaped (2)	ALL	Apr 2010
22	CB0049.8	WASHER, ""D"" shaped (2)	ALL
23	CD0002.T	NUT, swingarm pinch bolt (2)	ALL
24	DA0400.10CZ	LOCKNUT	ALL
25	DA0500.1FZ	NUT, axle adjustment (2)	ALL	Nov 2014
26	DA0700.13CZ	LOCKNUT (2)	ALL
27	DA0800.13CZ	LOCKNUT (3)	ALL
28	K0300.K	AXLE CARRIER, rear, die-cast (2)	ALL	Nov 2014
29	K0500.8H	MOUNT BLOCK ASSEMBLY, swingarm	ALL	Dec 2012
30	K0506.2A	PIN, isolator mount (2)	ALL	Nov 2014
31	K0100.K	SWINGARM, cast aluminum	ALL	May 2010
32	L0505.9	REAR ISOLATOR, RH	ALL
	L0504.9	REAR ISOLATOR, LH	ALL
33	O0612.K	PLUG, swingarm (not illustrated) (2)	ALL	Dec 2012
34	S1002.02A8	SCREW (2)	ALL
