2000-2001 S3/S3T Thunderbolt Parts Catalog

2001
  1. Home
  2. Part
  3. Catalogs

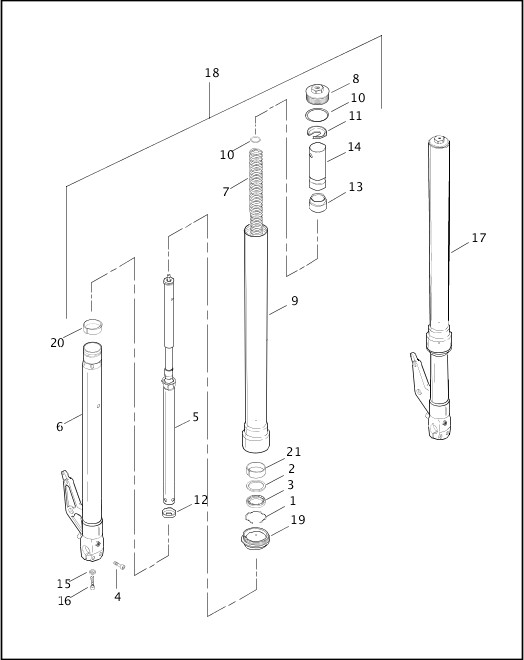

FRONT FORK

Part Image Missing
Index No. Part No. Description Models Obselete
1 45842-77A STOPPER RING, oil seal (2) ALL
2 45865-84 SEAL SPACER (2) ALL
3 45875-84A OIL SEAL (2) ALL
4 46131-99Y BOLT, front forks (4) ALL
5 46132-99Y DAMPER ASSEMBLY (2) ALL
6 46134-99Y SLIDER ASSEMBLY, right ALL
46136-99Y SLIDER ASSEMBLY, left ALL
7 46137-99Y SPRING (2) ALL
8 46138-99Y CAP, slider tube (2) ALL
9 46139-99Y OUTER FORK TUBE (2) ALL
10 46140-99Y O-RING SET (2) ALL
11 46143-99Y SPRING SEAT, upper (2) ALL
12 46144-99Y CENTERING PLATE (2) ALL
13 46145-99Y SPRING JOINT (2) ALL
14 46146-99Y SPRING COLLAR (2) ALL
15 J0115.02A8 WASHER, special (2) ALL
16 J0116.02A8 BOLT, center (2) ALL
17 J0120.ML FRONT FORK ASSEMBLY, left ALL
Apr 2010
18 J0120.MR FRONT FORK ASSEMBLY, right ALL
Apr 2010
19 J8130.02A8 DUST SEAL (2) ALL
20 J8138.02A8 BUSHING, slider tube (2) ALL
21 J8140.02A8 GUIDE BUSHING (2) ALL
>
