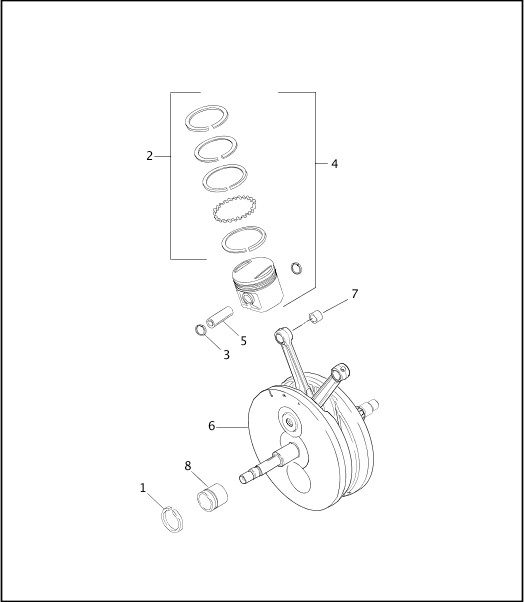

PISTONS, CONNECTING RODS & FLYWHEELS
| Index No. |
Part No. |
Description |
Models |
Obselete |
| 1 |
11177A
|
RETAINING RING |
ALL |
|
| 2 |
21920-83
|
PISTON RING SET, standard (2) |
ALL |
|
|
21921-83
|
PISTON RING SET, 0.005 O.S. (2) |
ALL |
|
|
21922-83
|
PISTON RING SET, 0.010 O.S. (2) |
ALL |
|
|
21923-83
|
PISTON RING SET, 0.020 O.S. (2) |
ALL |
|
|
21924-83
|
PISTON RING SET, 0.030 O.S. (2) |
ALL |
|
| 3 |
22589-83B
|
LOCK RING, piston pin (4) |
ALL |
|
| 4 |
22676-98Y
|
PISTON & RINGS ASSEMBLY, standard (2) |
ALL |
|
|
22677-98Y
|
PISTON & RINGS ASSEMBLY, 0.005 O.S. (2) |
ALL |
|
|
22678-98Y
|
PISTON & RINGS ASSEMBLY, 0.010 O.S. (2) |
ALL |
|
|
22679-98Y
|
PISTON & RINGS ASSEMBLY, 0.020 O.S. (2) |
ALL |
|
|
22681-98Y
|
PISTON & RINGS ASSEMBLY, 0.030 O.S. (2) |
ALL |
|
| 5 |
22765-88
|
PISTON PIN (2) |
ALL |
|
| 6 |
23899-00YB
|
SET OF FLYWHEELS & SHAFTS, w/ rods |
ALL |
|
| 7 |
24331-36
|
BUSHING, piston pin, standard (2) |
ALL |
|
|
24332-36
|
BUSHING, piston pin, 0.01 O.S. (2) |
ALL |
|
| 8 |
24658-87
|
INNER RING |
ALL |
|
