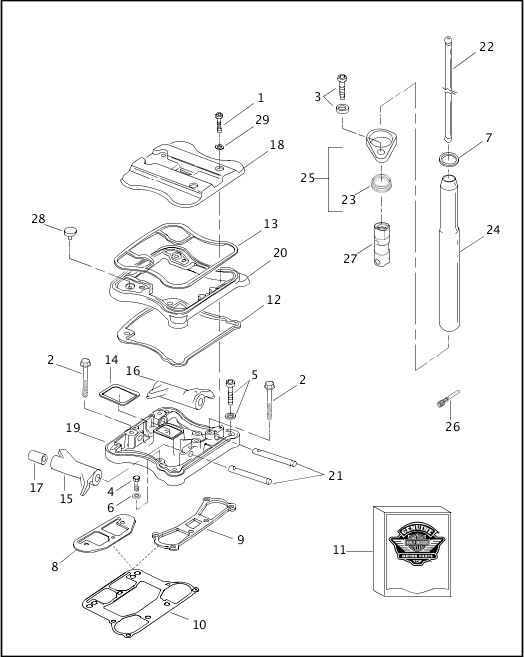

| 1 |
882
|
SCREW (8) |
ALL |
|
| 2 |
1039
|
SCREW, hex flange head, w/ locker (8) |
ALL |
|
| 3 |
3228A
|
SCREW, w/ washer (4) |
ALL |
|
| 4 |
3849
|
SCREW (6) |
ALL |
|
| 5 |
4718A
|
SCREW, w/ washer (4) |
ALL |
|
| 6 |
6736
|
WASHER (6) |
ALL |
|
| 7 |
11190
|
O-RING, push rod cover, upper (4) |
ALL |
|
| 8 |
16778-84B
|
GASKET, cylinder head, right (use 16800-84A) (2) |
ALL |
|
| 9 |
16779-84D
|
GASKET, cylinder head, left (use 16800-84A) (2) |
ALL |
|
| 10 |
16800-84A
|
GASKET, rocker cover/cylinder head, valve & push rod sides (replaces 16778-84B & 16779-84D) |
ALL |
|
| 11 |
17036-91A
|
GASKET KIT, rocker covers, w/ 10, 12, 13, 14, 28 & 29 |
ALL |
|
| 12 |
17353-89C
|
GASKET, rocker cover, lower (2) |
ALL |
|
| 13 |
17354-89
|
GASKET, rocker cover, upper (2) |
ALL |
|
| 14 |
17358-84B
|
GASKET, rocker cover, inner (2) |
ALL |
|
| 15 |
17360-83A
|
ROCKER ARM, front intake & rear exhaust, w/ 17429-91 (2) |
ALL |
|
| 16 |
17375-83A
|
ROCKER ARM, front exhaust & rear intake, w/ 17429-91 (2) |
ALL |
|
| 17 |
17429-91
|
BEARING, rocker arm (8) |
ALL |
|
| 18 |
17597-97Y
|
ROCKER COVER, outer (2) |
ALL |
|
| 19 |
17598-97YC
|
ROCKER COVER, inner (2) |
ALL |
|
| 20 |
17599-97Y
|
SPACER, rocker cover (2) |
ALL |
|
| 21 |
17611-83
|
SHAFT, rocker arm (4) |
ALL |
|
| 22 |
17897-89A
|
PUSH ROD, intake (2) |
ALL |
|
|
17904-89A
|
PUSH ROD, exhaust (2) |
ALL |
|
| 23 |
17944-89
|
SEAL, push rod cover (4) |
ALL |
|
| 24 |
17946-89
|
COVER, push rod, black (4) |
S3 2000, S3T 2000 |
|
|
17977-01Y
|
COVER, push rod, black (4) |
S3 2001, S3T 2001 |
|
| 25 |
17953-91
|
SEAL PLATE ASSEMBLY, push rod, front exhaust & rear intake, w/ cover & 17944-89 (2) |
ALL |
|
|
17952-91
|
SEAL PLATE ASSEMBLY, push rod, front intake & rear exhaust, w/ cover & 17944-89 (2) |
ALL |
|
| 26 |
18532-00A
|
SCREW, w/ washer, anti-rotation (4) |
ALL |
|
| 27 |
18538-99C
|
HYDRAULIC LIFTER (4) |
ALL |
|
| 28 |
26856-89A
|
VALVE, umbrella (2) |
ALL |
|
| 29 |
63858-49
|
GASKET (8) |
ALL |
|
