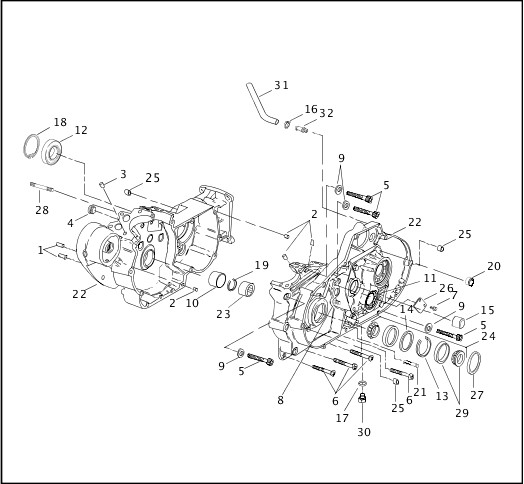

| 1 |
215
|
DOWEL PIN (2) |
ALL |
|
| 2 |
358
|
DOWEL PIN (4) |
ALL |
|
| 3 |
604
|
ROLL PIN (4) |
ALL |
|
| 4 |
720
|
PLUG, timing |
ALL |
|
| 5 |
1028
|
SCREW (4) |
ALL |
|
| 6 |
3696
|
SCREW (4) |
ALL |
|
| 7 |
4091
|
SCREW (2) |
ALL |
|
| 8 |
5226B
|
STUD (2) |
ALL |
|
| 9 |
6314W
|
WASHER (4) |
ALL |
|
| 10 |
8881
|
BEARING RACE |
ALL |
|
| 11 |
8977
|
BEARING, closed end |
ALL |
|
| 12 |
8996A
|
BEARING |
ALL |
|
| 13 |
9119A
|
RETAINING RING |
ALL |
|
| 14 |
9142
|
SHIM, roller bearing, 0.100 |
ALL |
|
|
9143
|
SHIM, roller bearing, 0.102 |
ALL |
|
|
9144
|
SHIM, roller bearing, 0.104 |
ALL |
|
|
9145
|
SHIM, roller bearing, 0.106 |
ALL |
|
|
9146
|
SHIM, roller bearing, 0.108 |
ALL |
|
|
9147
|
SHIM, roller bearing, 0.110 |
ALL |
|
|
9148
|
SHIM, roller bearing, 0.112 |
ALL |
|
|
9149
|
SHIM, roller bearing, 0.114 |
ALL |
|
|
9155
|
SHIM, roller bearing, 0.098 |
ALL |
|
| 15 |
9151
|
BEARING, closed end |
ALL |
|
| 16 |
10080
|
CLAMP |
ALL |
|
| 17 |
11105
|
O-RING |
ALL |
|
| 18 |
11161
|
RETAINING RING |
ALL |
|
| 19 |
11177A
|
RETAINING RING |
ALL |
|
| 20 |
16573-83A
|
DOWEL (2) |
ALL |
|
| 21 |
24530-90
|
PIN, groove |
ALL |
|
| 22 |
24559-00Y
|
CRANKCASE SET, w/ bearings |
ALL |
|
| 23 |
24647-87
|
BEARING, gear shaft (blue) |
ALL |
|
|
24650-87
|
BEARING, gear shaft (red) |
ALL |
|
|
24659-87
|
BEARING, gear shaft (white/gray) |
ALL |
|
|
24660-87
|
BEARING, gear shaft (green) |
ALL |
|
| 24 |
24729-74
|
BEARING ASSEMBLY |
ALL |
|
| 25 |
24754-75A
|
DOWEL PIN (3) |
ALL |
|
| 26 |
29950-91
|
COVER, stator wires |
ALL |
|
| 27 |
35151-74A
|
OIL SEAL |
ALL |
|
| 28 |
42449-80A
|
STUD |
ALL |
|
| 29 |
48302-85
|
BEARING, complete (2) |
ALL |
|
|
48315-60
|
BEARING CUP (2) |
ALL |
|
| 30 |
60348-65B
|
DRAIN PLUG KIT, w/ 11105 |
ALL |
|
| 31 |
62352-94B
|
HOSE, breather |
ALL |
|
| 32 |
63533-41A
|
FITTING, straight |
ALL |
|
