House of BUELL

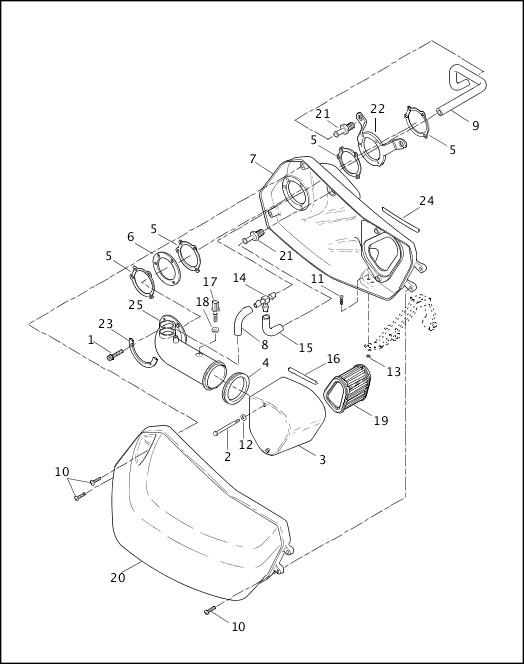

Index No.	Part No.	Description	Models	Obselete
1	3213Y	SCREW (3)	ALL	Feb 2010
2	2987Y	BOLT, filter housing cover (2)	ALL	Feb 2010
3	27530-97Y	AIR FILTER HOUSING	ALL
4	27546-96Y	GROMMET, snorkel	ALL
5	29059-88A	GASKET (4)	ALL
6	29265-88	SPACER, air cleaner	ALL
7	29542-99Y	BACKING PLATE ASSEMBLY, air cleaner	ALL
	29569-99Y	BACKING PLATE ASSEMBLY, air cleaner (California)	ALL
8	62683-93A	BREATHER HOSE, snorkel	ALL
9	63515-92	BREATHER HOSE, rear cylinder	ALL
10	AA0406.3CBL	SCREW, airbox cover (4)	ALL	Oct 2013
11	AN1005.3CZ	SCREW, airbox support (2)	ALL	May 2012
12	BA0409.1Z	WASHER, filter housing cover (2)	ALL
13	DN1000.1CZ	NUT, airbox support (2)	ALL	Oct 2013
14	HO0203.8B	BREATHER TEE FITTING	ALL
15	HS0201.C	BREATHER HOSE, front cylinder	ALL	Sep 2011
16	M0720.C-18	SEAL, air filter housing	ALL
17	P0138.K	SENSOR, air intake temperature	ALL
18	P0139.K	GROMMET, air intake temperature sensor	ALL	Feb 2017
19	P0213.9	FILTER ELEMENT	ALL	Nov 2014
20	P1215.B	COVER, airbox	S3 2000, S3 2001	Nov 2014
	P0215.E	COVER, airbox (not painted)	S3T 2000, S3T 2001	Nov 2014
21	P0235.9B	BOLT, breather (2)	ALL
22	P0280.F	SUPPORT PLATE, air cleaner	ALL
23	P0556.9C	SNORKEL PLATE	ALL	Nov 2014
24	P0559.B-43	SEAL, air cleaner backing plate	ALL
25	Z0025.M	SNORKEL, air cleaner, internal	ALL	Jul 2012
