2000-2001 S3/S3T Thunderbolt Parts Catalog

2001
  1. Home
  2. Part
  3. Catalogs

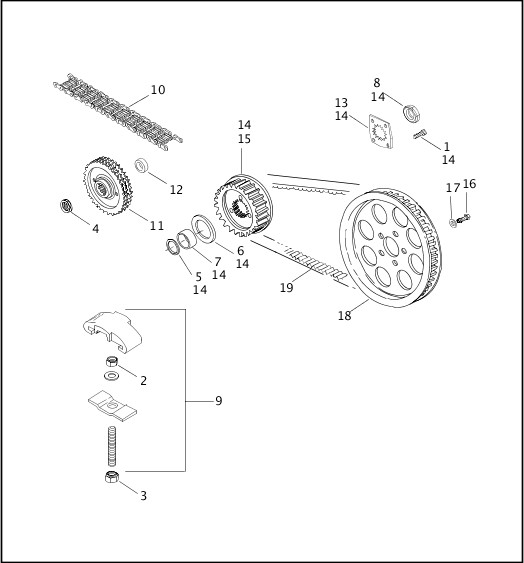

BELTS & SPROCKETS

Part Image Missing
Index No. Part No. Description Models Obselete
1 3594 SCREW (2) ALL
2 7667 NUT ALL
3 7804 LOCKNUT, sealing ALL
4 7839 NUT, engine sprocket ALL
5 11165 QUAD SEAL ALL
6 12067B OIL SEAL ALL
7 33344-94 SPACER ALL
8 35211-91B NUT, transmission sprocket ALL
9 39975-90A SHOE ASSEMBLY ALL
10 40005-57B PRIMARY CHAIN ALL
11 40235-89B ENGINE SPROCKET, 35T ALL
12 40240-89 SPACER, sprocket ALL
13 40251-92A LOCK PLATE ALL
14 40285-91B SPROCKET KIT, transmission, 27T, w/ 1, 5, 6, 7, 8, 13 & 15 ALL
15 40288-95 SPROCKET, transmission, 27T ALL
16 AA0712.1CZ BOLT (5) ALL
Nov 2014
17 BA0714.2Z WASHER (5) ALL
18 G0400.8A SPROCKET, rear wheel, 61T (black) ALL
Nov 2014
19 40022-91 BELT, drive, 128T ALL
>
