2000-2001 S3/S3T Thunderbolt Parts Catalog

2001
  1. Home
  2. Part
  3. Catalogs

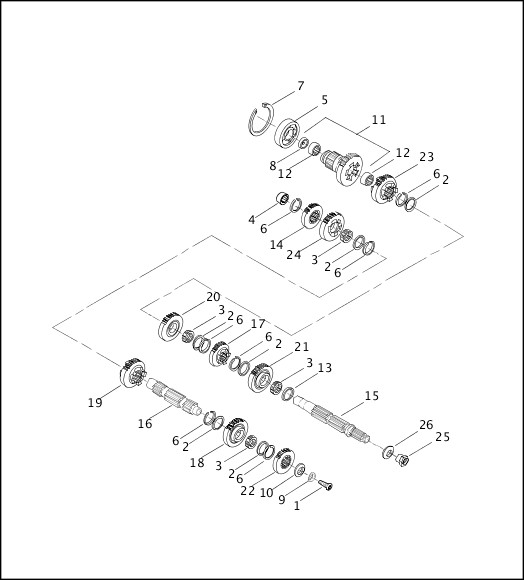

TRANSMISSION GEARS

Part Image Missing
Index No. Part No. Description Models Obselete
1 3675 SCREW ALL
2 6003 WASHER (6) ALL
3 8876A BEARING (4) ALL
4 8977 BEARING, closed end ALL
5 8996A BEARING, ball ALL
6 11067 RETAINING RING (7) ALL
7 11161 RETAINING RING ALL
8 12030 OIL SEAL ALL
9 35020-89 RETAINER, countershaft ALL
10 35022-89A SPACER ALL
11 35034-94 GEAR ASSEMBLY, 5th-mainshaft, w/ 12030 & 35051-89A ALL
12 35051-89A BEARING, needle (2) ALL
13 35063-89 SPACER ALL
14 35633-94 GEAR, 5th-countershaft ALL
15 35640-89 MAINSHAFT ALL
16 35641-89 COUNTERSHAFT ALL
17 35762-89A GEAR, 1st-mainshaft ALL
18 35763-89A GEAR, 1st-countershaft ALL
19 35771-94 GEAR, 3rd-countershaft ALL
20 35772-94 GEAR, 3rd-mainshaft ALL
21 35773-94 GEAR, 4th-mainshaft ALL
22 35775-94 GEAR, 4th-countershaft ALL
23 35796-00 GEAR, 2nd-mainshaft ALL
24 35797-00 GEAR, 2nd-countershaft ALL
25 37495-91 NUT, mainshaft ALL
26 37870-91 SPRING WASHER ALL
>
