2000-2001 S3/S3T Thunderbolt Parts Catalog

2001
  1. Home
  2. Part
  3. Catalogs

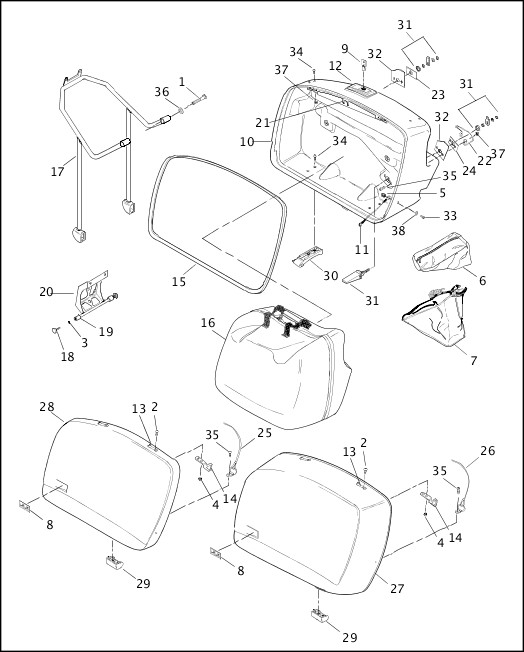

SADDLEBAGS

Part Image Missing
Index No. Part No. Description Models Obselete
1 3791Y BOLT (2) S3T 2000, S3T 2001
Feb 2010
2 AN0805.3CBBL SCREW (8) S3T 2000, S3T 2001
3 DA0400.4CZ JAMNUT (2) S3T 2000, S3T 2001
Nov 2014
4 DN0800.2CZ LOCKNUT (8) S3T 2000, S3T 2001
Nov 2014
5 7765Y KNURLED NUT (4) S3T 2000, S3T 2001
Apr 2010
6 C0810.E BAG, under seat ALL
Feb 2010
7 C0450.E BAG, right fairing ALL
Nov 2014
C0451.E BAG, left fairing ALL
Jan 2015
8 59263-79 REFLECTOR (red) (2) S3T 2000, S3T 2001
9 71452-91A KEY (specify key code) S3T 2000, S3T 2001
10 Z0709.MR INNER SADDLEBAG, right S3T 2000, S3T 2001
Apr 2010
Z0709.ML INNER SADDLEBAG, left S3T 2000, S3T 2001
Apr 2010
11 C3014.8 TETHER CORD, saddlebag lid (2) S3T 2000, S3T 2001
Jul 2010
12 91226-97YA SADDLEBAG LATCH & LOCK ASSEMBLY, right (use C0472.B) S3T 2000, S3T 2001
C0472.B SADDLEBAG LATCH ASSEMBLY (less lock), right S3T 2000, S3T 2001
Jan 2012
91223-97Y SADDLEBAG LATCH & LOCK ASSEMBLY, left (use C0471.B) S3T 2000, S3T 2001
C0471.B SADDLEBAG LATCH ASSEMBLY (less lock), left S3T 2000, S3T 2001
Dec 2012
13 91228-97Y PLATE, lid catch (4) S3T 2000, S3T 2001
14 91230-97Y CATCH, saddlebag lid, type A (2) S3T 2000, S3T 2001
91265-97Y CATCH, saddlebag lid, type B (2) S3T 2000, S3T 2001
15 C1801.E SEAL, saddlebag cover (2) S3T 2000, S3T 2001
Mar 2011
16 C0800.M SADDLEBAG LINER, deep, right S3T 2000, S3T 2001
Jul 2012
C0799.M SADDLEBAG LINER, deep, left S3T 2000, S3T 2001
Jul 2012
C0804.M SADDLEBAG LINER, shallow, left S3T 2000, S3T 2001
Dec 2012
C0805.M SADDLEBAG LINER, shallow, right S3T 2000, S3T 2001
Dec 2012
17 L1020.B SADDLEBAG BRACKET S3T 2000, S3T 2001
Dec 2012
18 C3011.EA BUMPER, saddlebag (2) S3T 2000, S3T 2001
Jul 2012
19 C3012.E RUBBER SLEEVE, saddlebag (2) S3T 2000, S3T 2001
Mar 2012
20 91268-97Y BRACKET, rear saddlebag support S3T 2000, S3T 2001
21 Z0464.E SADDLEBAG LATCH ASSEMBLY, right S3T 2000, S3T 2001
Sep 2011
Z0463.E SADDLEBAG LATCH ASSEMBLY, left S3T 2000, S3T 2001
Dec 2010
22 C0542.J WIRE FORM (right hand bag) S3T 2000, S3T 2001
Jun 2010
23 L1023.M BACKING PLATE, draw latch (5) S3T 2000, S3T 2001
Jun 2010
24 L1024.M BACKING PLATE, draw latch, lower right (right hand bag) S3T 2000, S3T 2001
Jun 2010
25 C3003.E SHOCK CORD, saddlebag cover, shallow (2) S3T 2000, S3T 2001
Nov 2014
26 91259-98Y SHOCK CORD, saddlebag cover, deep (2) S3T 2000, S3T 2001
27 Z0722.MPMD SADDLEBAG COVER KIT, deep, right (primed) S3T 2000, S3T 2001
Mar 2010
91335-99YYA SADDLEBAG COVER KIT, deep, right (billet metallic) (use Z0722.MPMD) S3T 2000
91335-99YYB SADDLEBAG COVER KIT, deep, right (carbon black) (use Z0722.MPMD) S3T 2000, S3T 2001
91335-99YYD SADDLEBAG COVER KIT, deep, right (blue streak) (use Z0722.MPMD) S3T 2001
91335-99YYE SADDLEBAG COVER KIT, deep, right (amazon green) (use Z0722.MPMD) S3T 2000
91335-99YYU SADDLEBAG COVER KIT, deep, right (reactor yellow) (use Z0722.MPMD) S3T 2001
91335-99YYX SADDLEBAG COVER KIT, deep, right (demon blue) (use Z0722.MPMD) S3T 2000
Z0722.01A6YAT SADDLEBAG COVER KIT, deep, right (volcano gray) (use Z0722.MPMD) S3T 2001
Z0721.MPMD SADDLEBAG COVER KIT, deep, left (primed) S3T 2000, S3T 2001
Mar 2010
91334-99YYA SADDLEBAG COVER KIT, deep, left (billet metallic) (use Z0721.MPMD) S3T 2000
91334-99YYB SADDLEBAG COVER KIT, deep, left (carbon black) (use Z0721.MPMD) S3T 2000, S3T 2001
91334-99YYD SADDLEBAG COVER KIT, deep, left (blue streak) (use Z0721.MPMD) S3T 2001
91334-99YYE SADDLEBAG COVER KIT, deep, left (amazon green) (use Z0721.MPMD) S3T 2000
91334-99YYU SADDLEBAG COVER KIT, deep, left (reactor yellow) (use Z0721.MPMD) S3T 2001
91334-99YYX SADDLEBAG COVER KIT, deep, left (demon blue) (use Z0721.MPMD) S3T 2000
Z0721.01A6YAT SADDLEBAG COVER KIT, deep, left (volcano gray) (use Z0721.MPMD) S3T 2001
28 Z0704.MPMD SADDLEBAG COVER KIT, shallow, right (primed) S3T 2000, S3T 2001
Mar 2010
91337-99YYA SADDLEBAG COVER KIT, shallow, right (billet metallic) (use Z0704.MPMD) S3T 2000
91337-99YYB SADDLEBAG COVER KIT, shallow, right (carbon black) (use Z0704.MPMD) S3T 2000, S3T 2001
91337-99YYD SADDLEBAG COVER KIT, shallow, right (blue streak) (use Z0704.MPMD) S3T 2001
91337-99YYE SADDLEBAG COVER KIT, shallow, right (amazon green) (use Z0704.MPMD) S3T 2000
91337-99YYU SADDLEBAG COVER KIT, shallow, right (reactor yellow) (use Z0704.MPMD) S3T 2001
91337-99YYX SADDLEBAG COVER KIT, shallow, right (demon blue) (use Z0704.MPMD) S3T 2000
Z0704.01A6YAT SADDLEBAG COVER KIT, shallow, right (volcano gray) (use Z0704.MPMD) S3T 2001
Feb 2010
Z0703.MPMD SADDLEBAG COVER KIT, shallow, left (primed) S3T 2000, S3T 2001
Mar 2010
91336-99YYA SADDLEBAG COVER KIT, shallow, left (billet metallic) (use Z0703.MPMD) S3T 2000
91336-99YYB SADDLEBAG COVER KIT, shallow, left (carbon black) (use Z0703.MPMD) S3T 2000, S3T 2001
91336-99YYD SADDLEBAG COVER KIT, shallow, left (blue streak) (use Z0703.MPMD) S3T 2001
91336-99YYE SADDLEBAG COVER KIT, shallow, left (amazon green) (use Z0703.MPMD) S3T 2000
91336-99YYU SADDLEBAG COVER KIT, shallow, left (reactor yellow) (use Z0703.MPMD) S3T 2001
91336-99YYX SADDLEBAG COVER KIT, shallow, left (demon blue) (use Z0703.MPMD) S3T 2000
Z0703.01A6YAT SADDLEBAG COVER KIT, shallow, left (volcano gray) (use Z0703.MPMD) S3T 2001
29 O0700.M HINGE, saddlebag, female (4) S3T 2000, S3T 2001
Sep 2012
30 O0710.M HINGE, saddlebag, male (4) S3T 2000, S3T 2001
Nov 2010
31 C3001.M DRAW LATCH ASSEMBLY (6) S3T 2000, S3T 2001
Nov 2010
32 91362-99Y PAD, rubber, w/ adhesive (6) S3T 2000, S3T 2001
33 AN1004.3FBBL SCREW (4) S3T 2000, S3T 2001
Apr 2012
34 AN1005.3CBBL SCREW (8) S3T 2000, S3T 2001
Nov 2014
35 AN1006.3CBBL SCREW (16) S3T 2000, S3T 2001
36 BA0511.2Z WASHER (2) S3T 2000, S3T 2001
37 7624 LOCKNUT (8) S3T 2000, S3T 2001
38 M0603.4 WASHER, nylon (4) S3T 2000, S3T 2001
>
