2000-2001 S3/S3T Thunderbolt Parts Catalog

2001
  1. Home
  2. Part
  3. Catalogs

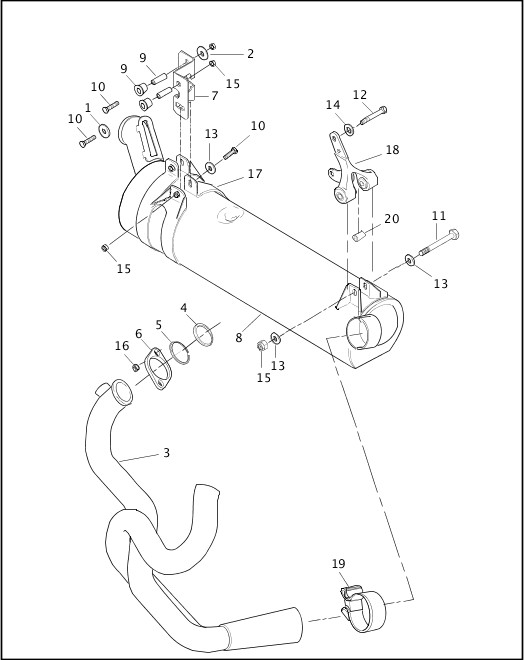

EXHAUST SYSTEM

Part Image Missing
Index No. Part No. Description Models Obselete
1 BA0518.9Z07 WASHER (2) ALL
Mar 2013
2 6134Y WASHER (2) ALL
Feb 2010
3 S0101.K EXHAUST HEADER ALL
Aug 2012
4 65324-83B GASKET, exhaust port (2) ALL
5 65325-83A RETAINING RING, exhaust clamp (2) ALL
6 65328-83A CLAMP, exhaust header (2) ALL
7 S0115.G Z BRACKET ALL
8 S0110.KA MUFFLER ALL
Feb 2010
9 S1157.K MUFFLER MOUNT KIT, rear (2) ALL
10 AA0512.1CUZ BOLT (4) ALL
11 AA0534.1CZ BOLT ALL
12 AA0646.1CZ BOLT (2) ALL
13 BA0511.2Z WASHER (4) ALL
14 BA0613.2Z WASHER (2) ALL
15 DA0500.10CZ LOCKNUT (3) ALL
16 DA0500.12FZ LOCKNUT (4) ALL
17 S0116.K CLAMP, muffler ALL
18 S0121.01A1 SUPPORT, header assembly S3 2001, S3T 2001
S1001.01A1 HEADER SUPPORT ASSEMBLY KIT (This kit replaces the 2000 model year header support.) S3 2000, S3T 2000
19 S0127.G CLAMP, muffler (2-1/2 inch) torca ALL
20 S0161.01A1 SPACER, muffler mount S3 2001, S3T 2001
Nov 2014
>
