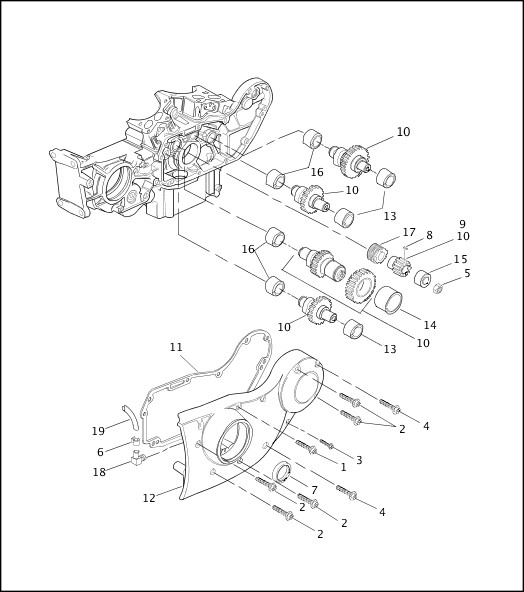

| 1 |
3480A
|
SCREW, sems (3) |
ALL |
|
| 2 |
4717A
|
SCREW, sems (5) |
ALL |
|
| 3 |
4740A
|
SCREW, sems |
ALL |
|
| 4 |
4820A
|
SCREW, sems (2) |
ALL |
|
| 5 |
7916A
|
JAM NUT |
ALL |
|
| 6 |
10117
|
CLAMP |
ALL |
|
| 7 |
11124
|
SEAL |
ALL |
|
| 8 |
11317
|
SQUARE KEY |
ALL |
|
| 9 |
24047-00
|
PINION GEAR |
ALL |
|
| 10 |
25195-00YB
|
CAM GEAR SET, complete, w/ pinion gear |
ALL |
|
| 11 |
25263-90D
|
GASKET, gearcase cover |
ALL |
|
| 12 |
25307-99YA
|
COVER ASSEMBLY, gearcase, w/ 7, 18 & bushings (black) |
ALL |
|
| 13 |
25586-37
|
OUTER BUSHING, cam gear shafts (3) |
ALL |
|
| 14 |
25588-91
|
BUSHING, rear intake, cam gear shaft |
ALL |
|
| 15 |
25593-74
|
BUSHING, flywheel gear shaft |
ALL |
|
| 16 |
25598-91
|
INNER BUSHING, camshaft gear (4) |
ALL |
|
| 17 |
26318-88A
|
DRIVE GEAR, oil pump |
ALL |
|
| 18 |
62375-57A
|
FITTING, oil vent hose |
ALL |
|
| 19 |
63501-68B
|
HOSE, 1/4 inch I.D. x 1/2 inch O.D. (rubber) |
ALL |
|
