2000-2001 S3/S3T Thunderbolt Parts Catalog
2001

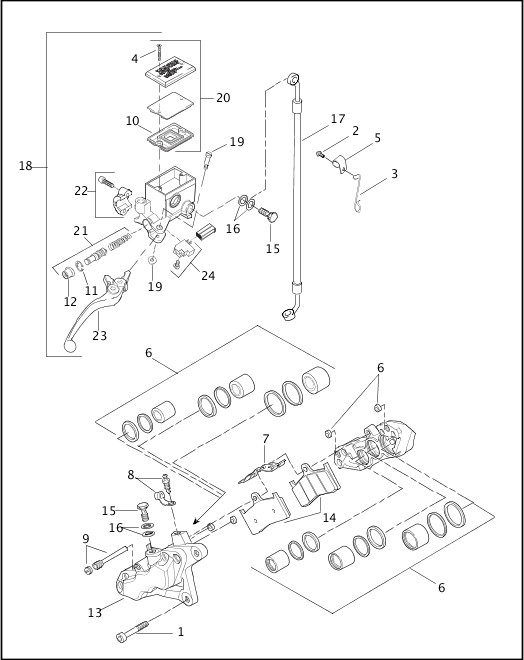

FRONT BRAKE CONTROL & CALIPER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 861A | SCREW (2) | ALL | |
| 2 | 4365 | SCREW | ALL | |
| 3 | 67387-97Y | WIRE GUIDE | ALL | |
| 4 | CA0200.R | SCREW, front master cylinder cover (2) | ALL | |
| 5 | C0901.C | CLAMP, front brake line | ALL | Nov 2014 |
| 6 | H0020.FA | REBUILD KIT, caliper, front | ALL | |
| 7 | H0021.F | RETAINER CLIP, brake pads, front | ALL | Jan 2013 |
| 8 | H0022.F | BLEEDER FITTING, front brake caliper, w/ cap | ALL | |
| 9 | H0023.F | MOUNTING PIN, brake pad, front caliper, w/ plug | ALL | |
| 10 | H0035.9 | DIAPHRAGM COVER, front master cylinder | ALL | |
| 11 | H0054.9 | CIRCLIP, brake piston | ALL | |
| 12 | H0055.9 | BOOT, brake piston | ALL | |
| 13 | H0110.FA | FRONT CALIPER ASSEMBLY, w/ pads | ALL | Feb 2015 |
| 14 | H0300.FA | BRAKE PAD SET, front | ALL | |
| 15 | H0405.9B | BANJO BOLT, master cylinder (2) | ALL | |
| 16 | H0412.01A0 | GASKET, master cylinder (4) | ALL | |
| 17 | H0531.B | BRAKE LINE ASSEMBLY, front | ALL | Feb 2010 |
| 18 | N0200.R | MASTER CYLINDER ASSEMBLY, w/ lever, bracket & switch | ALL | Feb 2010 |
| 19 | N0203.9 | PIVOT BOLT, front brake control lever, w/ nut | ALL | |
| 20 | N0210.R | COVER, master cylinder, w/ gasket & screws (2) | ALL | |
| 21 | N0220.F | PISTON SET, front master cylinder | ALL | |
| 22 | N0259.9 | CLAMP, front master cylinder | ALL | |
| 23 | N1202.9 | BRAKE LEVER KIT, front master cylinder, w/ N0203.9 | ALL | |
| 24 | Y0820.9 | SWITCH KIT, brake lever | ALL |
