2000-2001 S3/S3T Thunderbolt Parts Catalog
2001

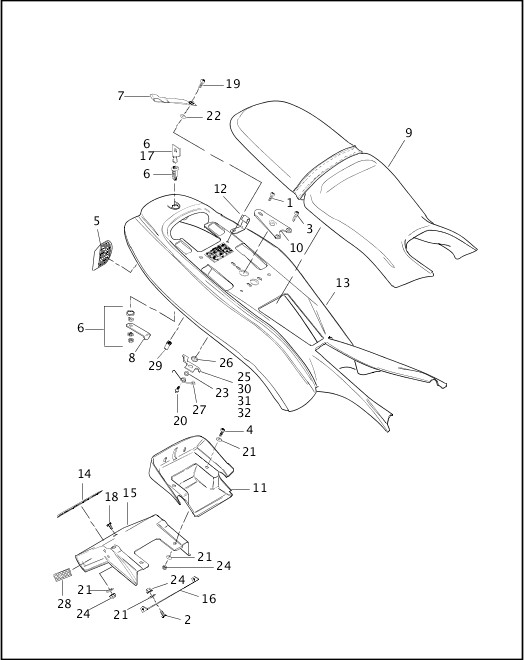

SEAT, TAIL SECTION & LICENSE PLATE HOLDER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0406.8CSS | SCREW | ALL | Mar 2013 |
| 2 | AA0406.1CZ | SCREW (2) | ALL | |
| 3 | 3650Y | SCREW, self-tapping (2) | ALL | Feb 2010 |
| 4 | AA0406.3CBL | SCREW (2) | ALL | Oct 2013 |
| 5 | M1052.B | SCREEN KIT, rear vent (left & right) | ALL | Apr 2010 |
| 6 | Y0610.B | IGNITION SWITCH & LOCK SET, w/ keys (fork, ignition & seat) | S3 2000, S3 2001 | Nov 2014 |
| Y0610.E | IGNITION SWITCH & LOCK SET, w/ keys (fork, ignition, seat & saddlebags) | S3T 2000, S3T 2001 | ||
| 7 | M0099.M | BUNGEE CORD LOOP | ALL | Mar 2012 |
| 8 | M0097.H | SEAT LOCK TANG | ALL | Feb 2010 |
| 9 | 52374-99Y | SEAT, complete | ALL | |
| 10 | 52376-97Y | SEAT STRIKE PLATE | ALL | |
| 11 | M0765.B | GLOVE BOX | ALL | Nov 2014 |
| 12 | M0071.B | BRACKET, helmet holder (2) | ALL | Jul 2012 |
| 13 | Z0664.MPMD | TAIL SECTION, rear (primed) | S3 2000, S3T 2000 | Mar 2010 |
| 59842-99YYA | TAIL SECTION (billet metallic) (use Z0664.MPMD) | S3 2000, S3T 2000 | ||
| 59842-99YYB | TAIL SECTION (carbon black) (use Z0664.MPMD) | S3 2000, S3T 2000 | ||
| 59842-99YYE | TAIL SECTION (amazon green) (use Z0664.MPMD) | S3 2000, S3T 2000 | ||
| 59842-99YYX | TAIL SECTION (demon blue) (use Z0664.MPMD) | S3 2000, S3T 2000 | ||
| M1664.01A5YB | TAIL SECTION, KIT (carbon black) (use Z0664.MPMD) | S3 2001, S3T 2001 | ||
| M1664.01A5YD | TAIL SECTION, KIT (blue streak) (use Z0664.MPMD) | S3 2001, S3T 2001 | ||
| M1664.01A5YU | TAIL SECTION, KIT (reactor yellow) (use Z0664.MPMD) | S3 2001, S3T 2001 | ||
| M1664.01A5YAT | TAIL SECTION, KIT (volcano gray) (use Z0664.MPMD) | S3 2001, S3T 2001 | ||
| 14 | 59988-72A | REFLECTOR (red) | ALL | |
| 15 | M0754.BB | LICENSE PLATE HOLDER | ALL | Jul 2012 |
| 16 | M0682.B | BRACKET, support, turn signal | ALL | Feb 2010 |
| 17 | 71452-91A | KEY (specify 4-digit key code) | ALL | |
| 18 | AA0408.9CDZ | BOLT | ALL | Feb 2010 |
| 19 | AA0408.11CDBL | SCREW (4) | ALL | |
| 20 | AA0502.20CXZB | SCREW, seat latch | ALL | |
| 21 | BA0409.1Z | WASHER (7) | ALL | |
| 22 | BA0409.6BL | WASHER, plastic (5) | ALL | |
| 23 | BA0511.2Z | WASHER, seat latch | ALL | |
| 24 | DA0400.10CZ | LOCKNUT (5) | ALL | |
| 25 | M0080.BA | SEAT LATCH | ALL | Apr 2010 |
| 26 | M0082.9 | BUSHING, seat latch | ALL | |
| 27 | M0083.9 | SPRING, seat latch | ALL | |
| 28 | 59259-90 | REFLECTOR (red) (Domestic) (2) | ALL | |
| 29 | M0705.3 | WELL-NUT (4) | ALL | |
| 30 | 52375-97Y | PIN, seat latch | ALL | |
| 31 | DA0700.4FZ | LOCKNUT, seat latch pin | ALL | |
| 32 | M0085.E | PULLWIRE, SEAT LATCH, remote | ALL | Dec 2012 |
