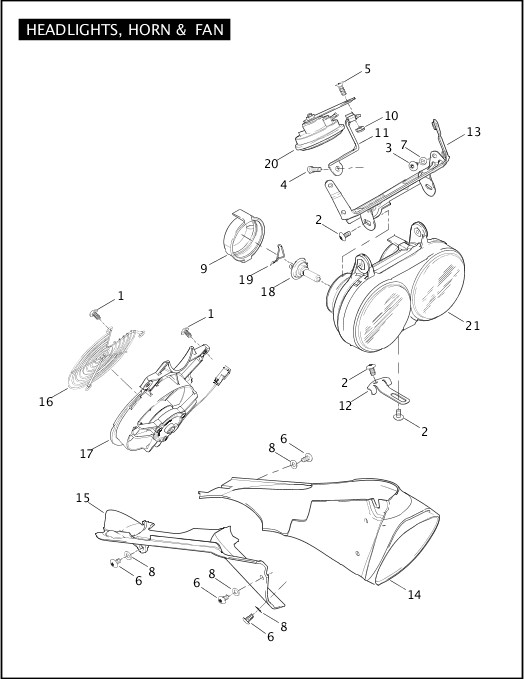

HEADLIGHTS, HORN & FAN

Part Image Missing
Index No. Part No. Description Models Obselete
53436-97 BULB, position (not illustrated) ALL
1 AA0404.10CSS SCREW (5) ALL
Oct 2015
2 AA0404.11CVB SCREW (4) ALL
Nov 2014
3 AA0404.11CXVB SCREW (2) ALL
Nov 2014
4 AA0406.2CZB SCREW ALL
Feb 2017
5 AA0404.5CZB SCREW ALL
6 AA0406.11CVB SCREW (6) ALL
7 B0613.1Z WASHER (2) ALL
8 BA0409.6BL WASHER (6) ALL
9 C0051.1AD BOOT, headlight (2) ALL
10 DA0400.8CZ LOCKNUT ALL
11 M0006.1AD BRACKET, horn mount ALL
Oct 2015
12 M0619.1AD BRACKET, lower headlight mount ALL
Oct 2015
13 M0645.1ADA BRACKET, headlight mount ALL
Oct 2015
14 M0902.02A8MBE AIR SCOOP ASSEMBLY, ram (body black) ALL
15 M0903.02A8A ENGINE SCOOP ASSEMBLY, right ALL
16 R0053.1ADB SCREEN, cooling fan ALL
Oct 2015
17 Y0050.02A8A FAN ASSEMBLY ALL
18 Y0148.1AD BULB, 55W (2) ALL
19 Y0149.1AD HOLDER, bulb (2) ALL
Y0150.1AD WIRE HARNESS, headlight (not illustrated) ALL
20 Y0308.TB HORN ALL
21 Y0721.6AC HEADLIGHT ASSEMBLY, left hand & right hand traffic, complete, w/ 9, 18, 19, 53436-97 & Y0150.1AD ALL
>
