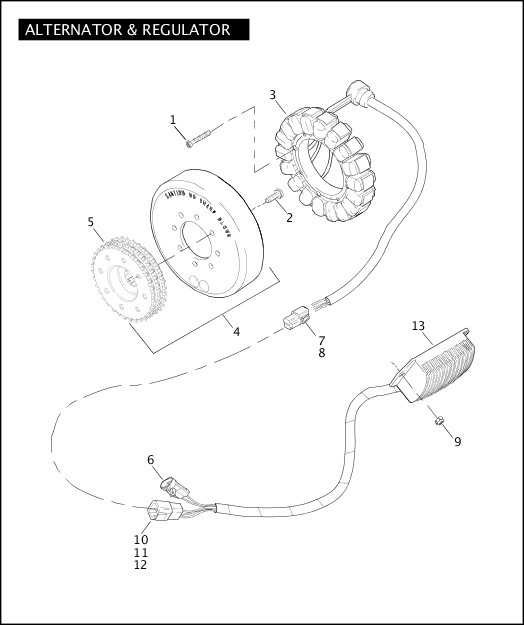

| 1 |
3029
|
SCREW (4) |
ALL |
|
| 2 |
4751
|
SCREW (8) |
ALL |
|
| 3 |
29971-02YA
|
STATOR ASSEMBLY, 3-phase, 38 AMP |
ALL |
|
| 4 |
32493-02B
|
SPROCKET ASSEMBLY, rotor 34T, w/ 4751 & 40241-02A |
XB9S, XB9SL |
|
| 4 |
32494-04B
|
SPROCKET ASSEMBLY, rotor 38T, w/ 4751 & 40290-04A |
XB12S |
|
| 5 |
40241-02A
|
SPROCKET, triple row, 34T (used w/ 32493-02B) |
XB9S, XB9SL |
|
| 5 |
40290-04A
|
SPROCKET, triple row, 38T (used w/ 32494-04B) |
XB12S |
|
| 6 |
72238-94
|
LOCK, secondary |
ALL |
|
| 7 |
72614-01BK
|
SOCKET, 4-way (black) |
ALL |
|
| 8 |
72654-01
|
LOCK, secondary 4-way socket |
ALL |
|
| 9 |
DN1000.2FZ
|
LOCKNUT, nylock (3) |
ALL |
|
| 10 |
Y0126.02A8
|
TERMINAL & SEAL SET, voltage regulator |
ALL |
|
| 11 |
Y0135.02A8
|
TERMINAL (5.0 - 3.0mm cable range) |
ALL |
|
| 12 |
Y0145.02A8
|
TERMINAL & SEAL SET |
ALL |
|
| 13 |
Y1302.02A8
|
VOLTAGE REGULATOR KIT |
ALL |
|
