Lightning Models Parts Catalog
2004

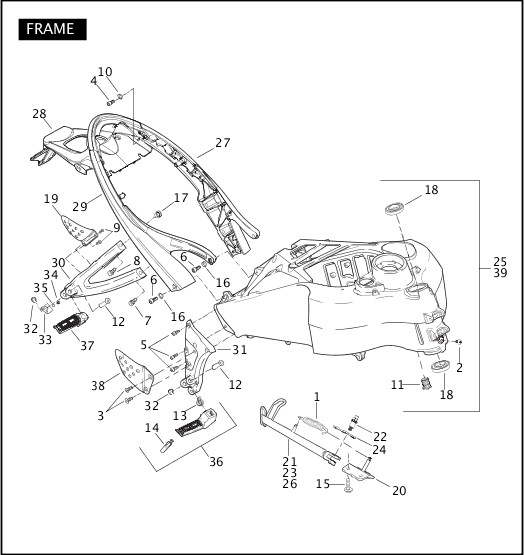

FRAME
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 50005-85A | SPRING, sidestand | ALL | |
| 2 | AA0404.11CVB | SCREW | ALL | Nov 2014 |
| 3 | AA0404.5CZB | SCREW (3) | ALL | |
| 4 | AA0405.2CXZB | SCREW (4) | ALL | |
| 5 | AA0406.2CZB | SCREW (5) | ALL | Feb 2017 |
| AA0409.5CZB | SCREW, left rider heel guard (not illustrated) | ALL | Feb 2017 |
|
| 6 | AA0508.2CXZB | SCREW (4) | ALL | |
| 7 | AA0608.2CXZB | SCREW (2) | ALL | |
| 8 | AA0615.2CZB | SCREW (2) | ALL | |
| 9 | AN1004.3FKZB | SCREW, passenger heel guards (4) | ALL | Feb 2017 |
| 10 | B0613.1Z | WASHER (4) | ALL | |
| 11 | C0028.02A8A | THREAD INSERT | ALL | |
| C0098.02A8 | CLIP, left rider heel guard (not illustrated) | ALL | Feb 2017 |
|
| 12 | C0235.02A8 | PIN, footpeg (2) | ALL | |
| 13 | C0249.02A8 | SPRING, right rider footpeg | ALL | Feb 2017 |
| C0250.02A8 | SPRING, left rider footpeg (not illustrated) | ALL | Feb 2017 |
|
| 14 | C0255.02A8 | WEAR PEG, rider footpeg (2) | ALL | |
| 15 | CA0015.02A8 | BOLT (2) | ALL | |
| 16 | CB0002.T | WASHER (4) | ALL | |
| 17 | DA0600.11CZ | LOCKNUT | ALL | |
| 18 | E0002.02A8A | BEARING (2) | ALL | |
| L0078.02A8 | HEEL GUARD, left, passenger (not illustrated) | ALL | ||
| 19 | L0079.02A8 | HEEL GUARD, right, passenger | ALL | Feb 2017 |
| 20 | L0152.5A8 | BRACKET ASSEMBLY, sidestand | ALL | |
| 21 | L0167.1AA | SIDESTAND LEG ASSEMBLY (use L1167.02A8) | XB12S, XB9S | |
| L0167.5A8 | SIDESTAND LEG ASSEMBLY (used w/ L1167.02A8) | XB12S, XB9S | ||
| L0167.2AE | SIDESTAND LEG ASSEMBLY (use L0194.5AE) | XB9SL | ||
| L0167.5AE | SIDESTAND LEG ASSEMBLY (used w/ L0194.5AE) | XB9SL | ||
| 22 | L0174.4A8 | PIVOT BOLT, sidestand | ALL | |
| 23 | L0194.5AE | SIDESTAND ASSEMBLY, complete, w/ 1, 20, 21, 22, 24 & 32 (replaces L0167.02AE) | XB9SL | |
| 24 | L0203.1AA | PLATE, sidestand spring extension | ALL | |
| 25 | L0600.1AC | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (Domestic) (See Fuel Tank & Pump for more information on kit.) | XB12S | Mar 2016 |
| 25 | L0600.2AD | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (Domestic) (See Fuel Tank & Pump for more information on kit.) | XB9S, XB9SL | Mar 2016 |
| 25 | L0605.1AC | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (California) (See Fuel Tank & Pump for more information on kit.) | XB12S | Mar 2016 |
| 25 | L0605.2AD | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (California) (See Fuel Tank & Pump for more information on kit.) | XB9S, XB9SL | Mar 2016 |
| 26 | L1167.02A8 | SIDESTAND LEG ASSEMBLY, service kit, w/ L0167.5A8, L0174.4A8 & N0425.02A8 (replaces L0167.1AA) | XB12S, XB9S | |
| 27 | M0612.1AD | TAIL SECTION, left (titanium silver) | XB9S, XB9SL | Feb 2017 |
| 27 | M0612.1ADYBT | TAIL SECTION, left (hammertone silver) | XB12S | Feb 2017 |
| 28 | M0613.1AD | BRACKET, license plate illumination/center tail section (titanium silver) | XB9S, XB9SL | Nov 2014 |
| M0613.1ADYBQ | BRACKET, license plate illumination/center tail section (magnesium tone) | XB12S | ||
| 29 | M0614.1AD | TAIL SECTION, right (titanium silver) | XB9S, XB9SL | Feb 2017 |
| M0614.1ADYBT | TAIL SECTION, right (hammertone silver) | XB12S | ||
| N0054.2ADYBD | BRACKET, left footpeg mount, passenger (fluid silver) (not illustrated) | XB9S, XB9SL | ||
| N0054.2ADYBP | BRACKET, left footpeg mount, passenger (graphite grey) (not illustrated) | XB12S | ||
| 30 | N0055.2ADYBD | BRACKET, right footpeg mount, passenger (fluid silver) | XB9S, XB9SL | |
| N0055.2ADYBP | BRACKET, right footpeg mount, passenger (graphite grey) | XB12S | ||
| 31 | N0401.02A8 | BRACKET, right footpeg mount, rider | ALL | |
| N0402.02A8 | BRACKET, left footpeg mount, rider (not illustrated) | ALL | ||
| 32 | N0425.02A8 | CLIP, footpeg (4) | ALL | |
| 33 | N0427.02A8A | DETENT PLATE, passenger (2) | ALL | |
| 34 | N0428.02A8 | SPRING, passenger footpeg (2) | ALL | Feb 2017 |
| 35 | N0429.02A8 | BALL, passenger footpeg (2) | ALL | |
| N0520.1AD | FOOTPEG, left rider, w/ C0255.02A8 (not illustrated) | ALL | ||
| 36 | N0521.1AD | FOOTPEG, right rider, w/ C0255.02A8 | ALL | |
| N0552.02A8 | FOOTPEG, left passenger (not illustrated) | ALL | ||
| 37 | N0553.02A8 | FOOTPEG, right passenger | ALL | |
| N0554.02A8 | HEEL GUARD, left rider (not illustrated) | ALL | ||
| 38 | N0555.02A8 | HEEL GUARD, right rider | ALL | |
| 39 | L0601.1AC | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (Canada) | XB12S | Mar 2016 |
| 39 | L0601.2AD | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (Canada) | XB9S | Mar 2016 |
| 39 | L0602.02A8 | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (England, Europe) | XB9S | |
| 39 | L0602.1AA | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (England, Europe) | XB12S | |
| 39 | L0603.02A8 | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (Australia) | XB9S | |
| 39 | L0603.1AA | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (Australia) | XB12S | Mar 2016 |
| 39 | L0604.1AC | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (Japan) | XB12S | Mar 2016 |
| 39 | L0604.1AD | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (Japan) | XB9S | Mar 2016 |
| N0402.02A8YBP | BRACKET, left footpeg mount, rider (Australia, Japan) (graphite grey) (not illustrated) | XB12S | Feb 2017 |
