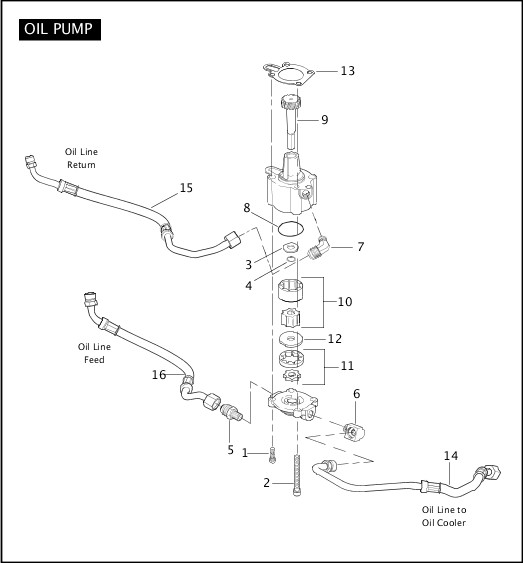

OIL PUMP

Part Image Missing
Index No. Part No. Description Models Obselete
1 4132 SCREW (2) ALL
2 4765 SCREW, sems (2) ALL
3 6157 WASHER ALL
4 11002 RETAINING RING ALL
4 26357-02A OIL PUMP, complete, w/ 1, 3, 4, 5, 6, 7, 8, 9, 10, 11 & 12 (use 26357-02B) ALL
4 26357-02B OIL PUMP, complete, w/ 1, 3, 4, 5, 6, 7, 8, 9, 10 & 11 (replaces 26357-02A) ALL
5 26358-02A FITTING, connector ALL
6 26359-02A FITTING, connector, 45 degree ALL
7 26361-02A FITTING, 90 degree ALL
8 26434-91 O-RING ALL
9 26488-98 GEAR SHAFT (used w/ 26357-02A) (use 26357-02B) ALL
9 26239-07 GEAR SHAFT (used w/ 26357-02B) ALL
10 26491-98 GEROTOR SET, return (used w/ 26357-02A) (use 26357-02B) ALL
10 26502-07 GEROTOR SET, return (used w/ 26357-02B) ALL
11 26492-91 GEROTOR SET, feed (used w/ 26357-02A) ALL
11 26503-07 GEROTOR SET, feed (used w/ 26357-02B) ALL
12 26493-91 SEPARATOR PLATE (used w/ 26357-02A) ALL
13 26495-89B GASKET, pump mounting ALL
14 HS0008.1AD OIL LINE, cooler feed ALL
15 HS0023.1AD OIL LINE, return ALL
16 HS0022.1AD OIL LINE, feed ALL
