Lightning Models Parts Catalog
2004

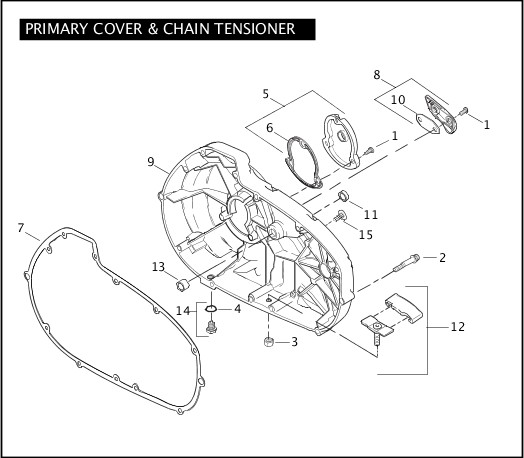

PRIMARY COVER & CHAIN TENSIONER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 943 | SCREW, sems (5) | ALL | |
| 2 | 4820A | SCREW, sems (13) | XB9S, XB9SL | |
| 2 | 4824 | SCREW, sems (black) (13) | XB12S | Oct 2015 |
| 3 | 7804 | LOCKNUT, chain adjustment | ALL | |
| 4 | 11105 | O-RING | ALL | |
| 5 | 25349-03 | COVER KIT, clutch, w/ 25377-03A | ALL | |
| 6 | 25377-03A | GASKET, clutch cover | ALL | |
| 7 | 25378-02B | GASKET, primary cover | ALL | |
| 8 | 25380-03 | COVER KIT, inspection, w/ 34819-03A | ALL | |
| 9 | 25521-02 | PRIMARY COVER, w/ 40520-63 (black) | XB9S, XB9SL | |
| 25542-04 | PRIMARY COVER, w/ 40520-63 (metallic) | XB12S | ||
| 10 | 34819-03A | GASKET, inspection cover | ALL | |
| 11 | 37101-84B | OIL SEAL, shifter shaft | ALL | |
| 12 | 40039-02C | ADJUSTER ASSEMBLY | ALL | |
| 13 | 40520-63 | BUSHING | ALL | |
| 14 | 60328-98B | DRAIN PLUG KIT, w/ 11105 | ALL | |
| 15 | C0230.T | PLUG | ALL |
