Lightning Models Parts Catalog
2004

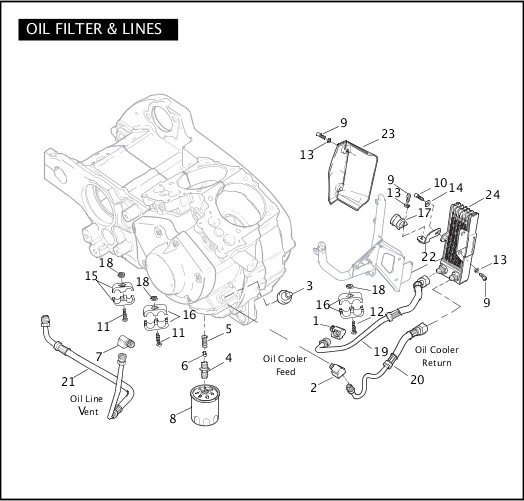

OIL FILTER & LINES
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 26359-02A | FITTING, connector, 45 degree | ALL | |
| 2 | 26365-02A | FITTING, connector, 90 degree | ALL | |
| 3 | 26554-77B | SWITCH, oil pressure | ALL | |
| 4 | 33117-91A | ADAPTER, oil filter | ALL | |
| 5 | 33154-00Y | SPRING | ALL | |
| 6 | 33155-00Y | BALL | ALL | |
| 7 | 62376-02 | FITTING, oil vent hose | ALL | |
| 8 | 63806-00Y | OIL FILTER | ALL | |
| 9 | AA0405.2CXZB | SCREW (2) | ALL | |
| 10 | AA0406.2CZB | SCREW | ALL | Feb 2017 |
| 11 | AN1005.14FZB | SCREW (2) | ALL | Nov 2014 |
| 12 | AN1006.14FZB | SCREW | ALL | |
| 13 | B0613.1Z | WASHER (2) | ALL | |
| 14 | BA0410.3Z | WASHER | ALL | Feb 2017 |
| 15 | C0034.02A8 | CLAMP, 3/8 inch routing holes | ALL | Feb 2017 |
| 16 | C0056.1AA | CLAMP, 1/2 inch routing holes (2) | ALL | |
| 17 | C0529.M | CLAMP | ALL | Feb 2017 |
| 18 | DN1000.10FZB | NUT (3) | ALL | |
| 19 | HS0008.1AD | OIL LINE, cooler feed | ALL | |
| 20 | HS0009.1AD | OIL LINE, cooler return | ALL | |
| 21 | HS0024.1AD | OIL LINE, vent | ALL | May 2017 |
| 22 | L0077.02A8 | BRACKET, stabilizer | ALL | Nov 2014 |
| 23 | M0070.02A8 | SCOOP, oil cooler | ALL | |
| 24 | Q0002.02A8 | OIL COOLER | ALL |
