Lightning Models Parts Catalog
2004

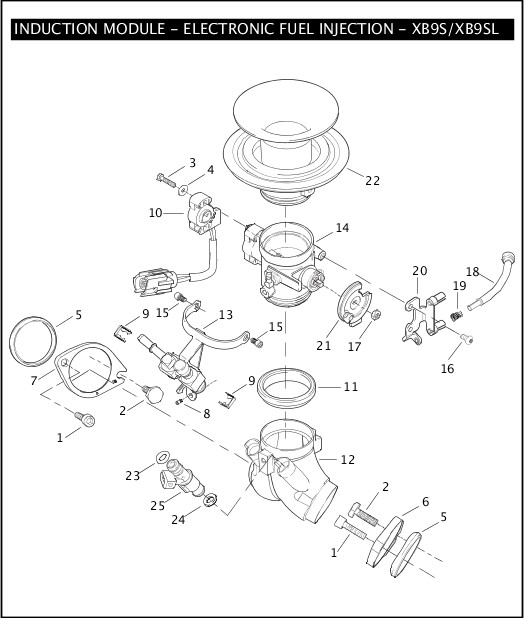

INDUCTION MODULE - ELECTRONIC FUEL INJECTION - XB9S/XB9SL
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 3275 | SCREW (2) | XB9S, XB9SL | |
| 2 | 3987 | BOLT (2) | XB9S, XB9SL | |
| 3 | 3323Y | BOLT (2) | XB9S, XB9SL | Nov 2014 |
| 4 | 6090Y | WASHER (2) | XB9S, XB9SL | Jul 2015 |
| 5 | 26995-86B | SEAL, intake manifold (2) | XB9S, XB9SL | |
| 6 | 27009-86A | MOUNTING FLANGE, front intake | XB9S, XB9SL | |
| 7 | 27010-86A | MOUNTING FLANGE, rear intake | XB9S, XB9SL | |
| 27425-02 | FUEL INDUCTION MODULE, w/ 27674-02, 29539-99Y, 29803-02 & 29806-02 | XB9S, XB9SL | ||
| 27584-02 | VACUUM PLUG (not illustrated) | XB9S, XB9SL | ||
| 8 | 27674-02 | SCREW (2) | XB9S, XB9SL | |
| 9 | 29534-99Y | CLIP, injector (2) | XB9S, XB9SL | |
| 10 | 29537-99Y | THROTTLE POSITION SENSOR | XB9S, XB9SL | |
| 11 | 29539-99Y | SEAL, throttle body | XB9S, XB9SL | |
| 29803-02 | MANIFOLD ASSEMBLY, w/ 7, 8, 11, 12, 23, 24 & 25 | XB9S, XB9SL | ||
| 12 | 29804-02 | INTAKE MANIFOLD | XB9S, XB9SL | |
| 13 | 29805-02 | FUEL RAIL ASSEMBLY | XB9S, XB9SL | |
| 14 | 29806-02 | THROTTLE BODY ASSEMBLY, w/ 3, 4, 9, 18, 19, 20 & 21 | XB9S, XB9SL | |
| 15 | A0508.2CSS | SCREW (2) | XB9S, XB9SL | Nov 2014 |
| 16 | CA0026.02A8 | SCREW | XB9S, XB9SL | Jul 2015 |
| 17 | CD0012.02A8 | NYLOCK | XB9S, XB9SL | |
| 18 | P0011.02A8 | ADJUSTER, idle | XB9S, XB9SL | |
| 19 | P0012.02A8 | SPRING, idle adjuster | XB9S, XB9SL | |
| 20 | P0023.02A8 | BRACKET, cable | XB9S, XB9SL | Nov 2014 |
| 21 | P0024.02A8 | THROTTLE LEVER ASSEMBLY | XB9S, XB9SL | Nov 2014 |
| 22 | P0025.02A8 | VELOCITY STACK | XB9S, XB9SL | Nov 2014 |
| 23 | P0028.02A8 | O-RING, fuel injector, inlet (2) | XB9S, XB9SL | |
| 24 | P0029.02A8 | O-RING, fuel injector, outlet (2) | XB9S, XB9SL | |
| 25 | P0786.02A8 | FUEL INJECTOR (2) | XB9S, XB9SL |
