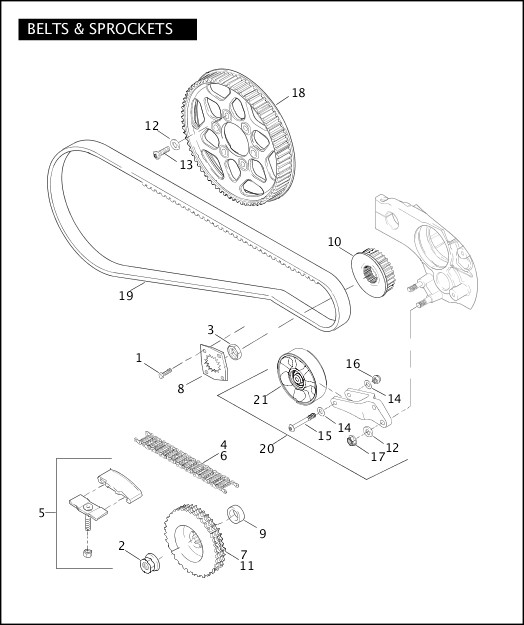

BELTS & SPROCKETS

Part Image Missing
Index No. Part No. Description Models Obselete
1 3594 SCREW (2) ALL
2 7839 NUT, engine sprocket ALL
3 35211-91B NUT, transmission sprocket ALL
4 40005-57B PRIMARY CHAIN XB9S, XB9SL
5 40039-02C ADJUSTER ASSEMBLY, chain, w/ shoe, collar, plate & screw ALL
6 40147-04 PRIMARY CHAIN XB12S
7 40241-02A SPROCKET, triple row, 34T XB9S, XB9SL
8 40251-92A LOCK PLATE ALL
9 40254-02 SPACER, sprocket shaft ALL
10 40288-95 SPROCKET ASSEMBLY, transmission, 30T ALL
11 40290-04A SPROCKET, triple row, 38T XB12S
12 6400HB WASHER (8) ALL
13 AA0609.11CXZB SCREW (6) ALL
14 BA0511.2Z WASHER (2) ALL
15 CA0020.02A8 BOLT ALL
Feb 2017
16 DA0500.2CZ LOCKNUT ALL
17 DA0600.12FAZB LOCKNUT, flange (2) ALL
18 G0400.1AA REAR SPROCKET, 65T ALL
19 G0500.1AAH DRIVE BELT ALL
20 G0604.1AAB IDLER PULLEY ASSEMBLY, w/ BA0511.2Z, CA0020.02A8, DA0500.2CZ, G0614.02A8E & bracket ALL
21 G0614.02A8E WHEEL, idler pulley ALL
>
