House of BUELL

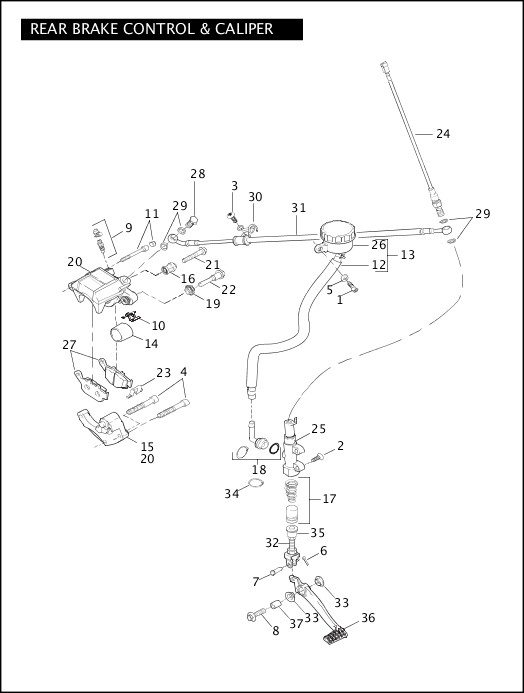

Index No.	Part No.	Description	Models	Obselete
1	A0620.2CZB	BOLT	ALL	Nov 2014
2	A0620.5CZB	SCREW (2)	ALL	Nov 2014
3	AA0406.11CVB	SCREW	ALL
4	AA0620.2CZB	SCREW (2)	ALL
5	B0613.1Z	WASHER	ALL
6	C0148.T	COTTER PIN	ALL
7	C0232.TA	CLEVIS PIN, rear master cylinder	ALL
8	CA0015.02A8	BOLT, flange head	ALL
9	H0022.F	FITTING, brake bleeder, w/ cap	ALL
10	H0024.F	CLIP	ALL
11	H0026.F	PIN	ALL
12	H0027.1AD	HOSE SET, rear master cylinder	ALL
13	H0012.1AD	RESERVOIR & HOSE ASSEMBLY	ALL	Feb 2017
14	H0030.T	PISTON SET, rear caliper	ALL
15	H0033.02A8A	CARRIER ASSEMBLY, complete, w/ H0118.02A8	ALL
16	H0034.T	BOOT SET, flange bolt	ALL
17	H0040.F	PISTON SET, rear master cylinder	ALL
18	H0041.F	CONNECTOR, rear master cylinder	ALL
19	H0053.T	BOOT, bracket pin	ALL
20	H0102.02A8A	CALIPER & CARRIER, rear	ALL	Feb 2017
21	H0105.F	BOLT, flange caliper	ALL
22	H0106.F	PIN BOLT, rear caliper	ALL
23	H0118.02A8	RETAINER, rear caliper	ALL
24	H0203.02A8	SWITCH, rear brake light	ALL
25	H0205.1AA	MASTER CYLINDER, rear, w/ H0040.F, H0041.F, N0505.1AD, N0516.T & N0517.T	ALL
26	H0206.T	TANK ASSEMBLY SET, master cylinder	ALL
27	H0301.T	BRAKE PAD ASSEMBLY, rear	ALL
28	H0405.9B	BANJO BOLT, master cylinder	ALL
29	H0412.01A0	WASHER (4)	ALL
30	H0417.02A8	WIRE FORM, rear brake line	ALL	Nov 2014
31	H1522.1AA	BRAKE LINE ASSEMBLY, rear, w/ H0203.02A8, H0405.9B & H0412.01A0	ALL	Nov 2014
32	N0505.1AD	ROD, brake linkage	ALL
33	N0513.T	BEARING, pedal (2)	ALL
34	N0516.T	CIRCLIP	ALL
35	N0517.T	BOOT, brake piston	ALL
36	N0530.02A8	PEDAL ASSEMBLY, w/ N0513.T	ALL
37	N0599.02A8A	SLEEVE, shift/brake lever	ALL
