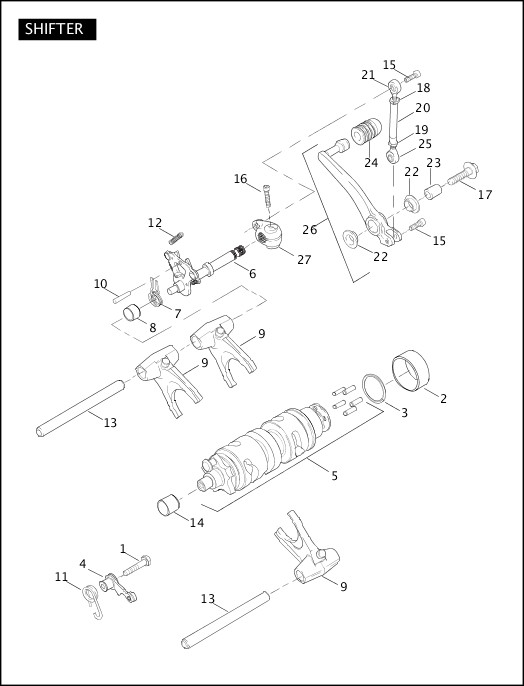

| 1 |
3997A
|
BOLT |
ALL |
|
| 2 |
9187
|
BEARING |
ALL |
|
| 3 |
11360
|
RING, retaining |
ALL |
|
| 4 |
33540-02A
|
SPRING SLEEVE ASSEMBLY, detent |
ALL |
|
| 5 |
33634-02A
|
SHIFTER CAM ASSEMBLY |
ALL |
|
|
33900-99
|
SWITCH, neutral (not illustrated) |
ALL |
|
| 6 |
34014-02B
|
SHIFTER LEVER ASSEMBLY |
ALL |
|
| 7 |
34064-00C
|
SPRING, shifter return |
ALL |
|
| 8 |
34076-02A
|
BUSHING |
ALL |
|
| 9 |
34144-02
|
FORK ASSEMBLY, shifter (3) |
ALL |
|
| 10 |
34163-02
|
PIN, shifter stop |
ALL |
|
| 11 |
34483-02
|
SPRING, detent |
ALL |
|
| 12 |
34491-02A
|
SPRING, extension (2) |
ALL |
|
| 13 |
34981-02A
|
SHAFT, shifter forks (2) |
ALL |
|
| 14 |
34982-02A
|
BUSHING, right hand crankcase |
ALL |
|
| 15 |
AN1006.2CXZB
|
BOLT (2) |
ALL |
|
| 16 |
AN1009.2CXZB
|
BOLT |
ALL |
|
| 17 |
CA0015.02A8
|
BOLT, flange head |
ALL |
|
| 18 |
CD0007.02A8
|
JAM NUT |
ALL |
|
| 19 |
DN1000.4FZB
|
JAM NUT, thin |
ALL |
|
| 20 |
N0320.02A8
|
LINKAGE ASSEMBLY, shifter, w/ CD0007.02A8, DN1000.4FZB, N0507.01A1A & N0606.02A8A |
ALL |
|
| 21 |
N0507.01A1A
|
ROD END, shift linkage, male, right hand thread |
ALL |
|
| 22 |
N0513.T
|
BEARING, pedal (2) |
ALL |
|
| 23 |
N0599.02A8A
|
SLEEVE, shift/brake lever |
ALL |
|
| 24 |
N0600.02A8A
|
TOE PEG, shift lever |
ALL |
|
| 25 |
N0606.02A8A
|
ROD END, shift linkage, male, left hand thread |
ALL |
|
| 26 |
N0630.02A8A
|
SHIFT PEDAL ASSEMBLY, w/ N0513.T & N0600.02A8A |
ALL |
|
| 27 |
T0225.02A8
|
LEVER, engine |
ALL |
|
