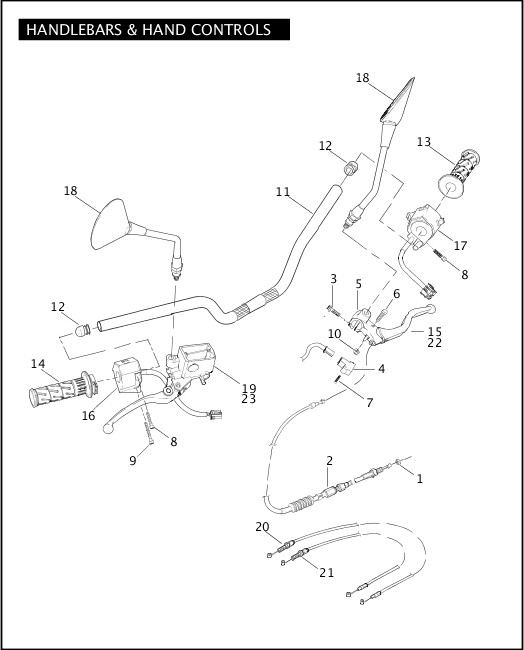

HANDLEBARS & HAND CONTROLS

Part Image Missing
Index No. Part No. Description Models Obselete
1 11179 O-RING ALL
2 38613-03C CLUTCH CABLE ALL
3 A0622.21CBL SCREW, clutch lever pinch ALL
C0048.02A8 CLAMP, clutch cable (not illustrated) ALL
Nov 2014
4 C0145.T SWITCH, clutch lever ALL
5 C0149.T BRACKET, clutch lever ALL
6 CA0002.TA BOLT, switch lever assembly ALL
7 CA0006.TA SCREW, switch mounting ALL
8 CA0052.5AA SCREW (3) ALL
9 CA0053.5AA SCREW ALL
10 CD0001.T NUT, clutch lever ALL
11 N0002.1AD HANDLEBAR ALL
12 N0010.02A8 END CAP (2) ALL
13 N0050.K HAND GRIP, left ALL
14 N0051.K HAND GRIP, right ALL
15 N0104.02A8 CLUTCH LEVER ASSEMBLY, w/ C0145.T, C0149.T, CA0002.TA, CA0006.TA & CD0001.T ALL
Oct 2015
16 N0158.TA SWITCH GEAR, right ALL
17 N0159.TB SWITCH GEAR, left ALL
18 N0161.01A1A MIRROR (2) ALL
19 N0200.02A8 MASTER CYLINDER ASSEMBLY, front, complete (Australia, Canada, Domestic, England, Europe) ALL
20 N0307.1ADA CABLE, throttle control ALL
21 N0308.1ADA CABLE, idle control ALL
22 N1102.02A8 CLUTCH LEVER KIT, w/ CA0002.TA & CD0001.T ALL
23 N0096.02A8 MASTER CYLINDER ASSEMBLY, w/ lever & label(s) (Japan) XB12S, XB9S
>
