Lightning Models Parts Catalog
2004

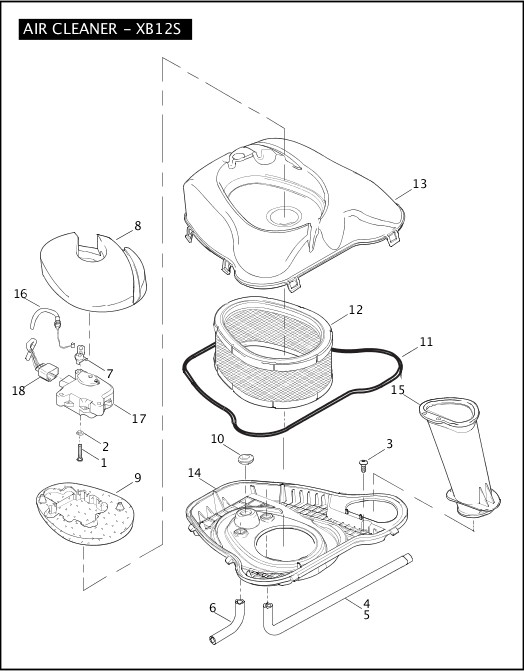

AIR CLEANER - XB12S
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | A0630.3CZB | SCREW, shoulder | XB12S | Nov 2014 |
| 2 | B0613.1Z | WASHER, flat | XB12S | |
| 3 | CA0012.02A8 | SCREW, shoulder (4) | XB12S | |
| 4 | HS0014.02A8 | SLEEVE | XB12S | |
| 5 | HS0016.02A8 | BREATHER HOSE, front, w/ HS0014.02A8 | XB12S | |
| 6 | HS0455.02A8 | BREATHER HOSE, rear | XB12S | |
| 7 | P0014.1AAA | BRACKET, cable | XB12S | Nov 2014 |
| 8 | P0020.1AA | ISOLATOR, EVA, upper | XB12S | Nov 2014 |
| 9 | P0021.1AA | ISOLATOR, EVA, lower | XB12S | Nov 2014 |
| 10 | P0139.K | GROMMET | XB12S | Feb 2017 |
| 11 | P0144.02A8 | SEAL, air cleaner | XB12S | |
| 12 | P0213.02A8 | FILTER ELEMENT | XB12S | |
| 13 | P0215.1AA | COVER, air cleaner | XB12S | Nov 2014 |
| 14 | P0700.02A8 | BASEPLATE ASSEMBLY, w/ P0144.02A8 | XB12S | Nov 2014 |
| 15 | P0851.02A8 | SNORKEL, intake | XB12S | Nov 2014 |
| 16 | S0137.1AA | CABLE, interactive exhaust | XB12S | |
| 17 | S1138.1AA | ACTUATOR KIT, interactive exhaust, w/ bracket | XB12S | |
| 18 | Y0206.1AA | HARNESS, interactive exhaust | XB12S | Nov 2014 |
