Lightning Models Parts Catalog
2004

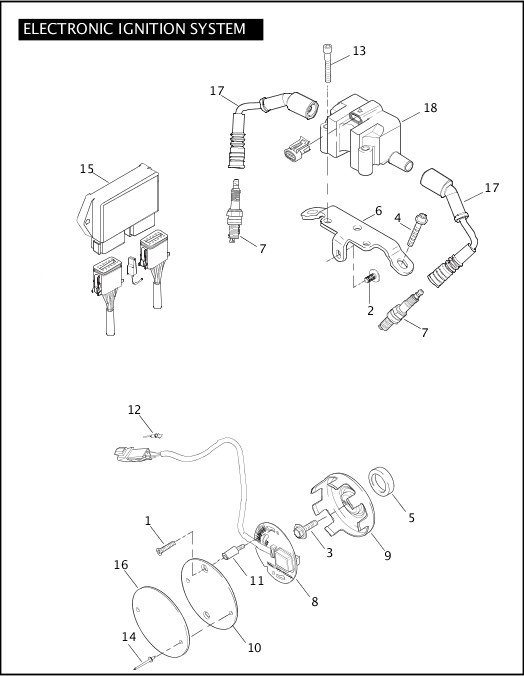

ELECTRONIC IGNITION SYSTEM
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 1601 | SCREW (2) | ALL | |
| 2 | 2445 | SCREW | ALL | |
| 3 | 2611C | BOLT | ALL | |
| 4 | 3480A | SCREW, coil mount (2) | ALL | |
| 5 | 11124 | SEAL | ALL | |
| 6 | 16357-02A | MOUNT, cylinder brace/throttle body | ALL | |
| 7 | 32335-04 | SPARK PLUG (2) | ALL | |
| 8 | 32443-04 | SENSOR ASSEMBLY, w/ 72190-94 | ALL | |
| 9 | 32473-02 | CUP, trigger rotor | ALL | |
| 10 | 32504-80A | COVER, timer, inner | ALL | |
| 11 | 32606-82 | STUD (2) | ALL | |
| 12 | 72190-94 | TERMINAL, single socket | ALL | |
| 13 | AA0414.2CXZB | SCREW, coil mounting | ALL | Nov 2014 |
| 14 | C0044.02A8A | RIVET, black (2) | ALL | Nov 2014 |
| 15 | Y0152.3A8 | ENGINE CONTROL MODULE | ALL | |
| 16 | T0111.1AC | COVER, timer, outer | XB12S | Nov 2014 |
| 16 | T0111.1AD | COVER, timer, outer | XB9S, XB9SL | Nov 2014 |
| 17 | Y0204.02A8C | WIRE, spark plug (2) | ALL | |
| 18 | Y0300.02A8 | IGNITION COIL | ALL |
