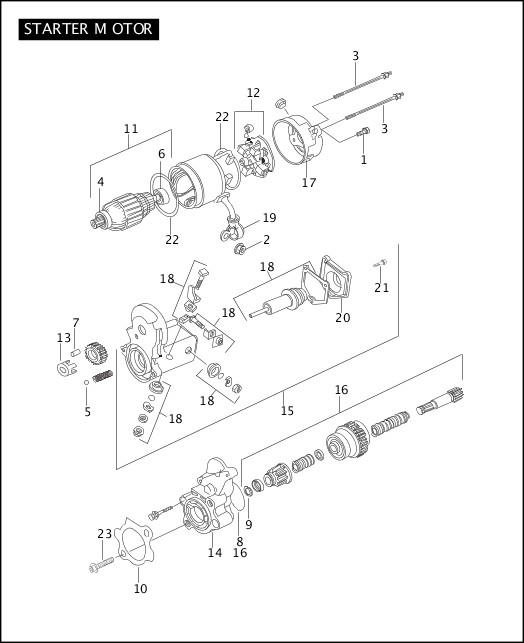

| 1 |
929A
|
SCREW (2) |
ALL |
|
| 2 |
3403
|
LOCKNUT |
ALL |
|
| 3 |
3559
|
BOLT, through (2) |
ALL |
|
| 4 |
8871
|
BALL BEARING |
ALL |
|
| 5 |
8879
|
BALL |
ALL |
|
| 6 |
8883
|
BALL BEARING |
ALL |
|
| 7 |
9077
|
CLUTCH ROLLER (5) |
ALL |
|
| 8 |
10957
|
O-RING |
ALL |
|
| 9 |
31328-91
|
RING, snap |
ALL |
|
|
31390-91F
|
STARTER MOTOR, complete (black) |
ALL |
|
| 10 |
31488-81C
|
GASKET, starter motor |
ALL |
|
| 11 |
31515-90
|
ARMATURE ASSEMBLY, w/ 8871 & 8883 |
ALL |
|
| 12 |
31518-90
|
HOLDER ASSEMBLY, starter brush |
ALL |
|
| 13 |
31530-90
|
RETAINER, idler |
ALL |
|
| 14 |
31539-91
|
HOUSING, starter |
ALL |
|
| 15 |
31540-91
|
SWITCH ASSEMBLY, magnetic |
ALL |
|
| 16 |
31556-91D
|
CLUTCH SUB-ASSEMBLY, w/ 10957, 31328-91 & return spring |
ALL |
|
| 17 |
31599-91
|
FRAME, starter end |
ALL |
|
| 18 |
31603-91
|
STARTER SOLENOID REPAIR KIT |
ALL |
|
| 19 |
31662-90
|
CAP TERMINAL, rubber |
ALL |
|
| 20 |
31688-90
|
COVER, solenoid |
ALL |
|
| 21 |
31689-90
|
BOLT, w/ washer (3) |
ALL |
|
| 22 |
31695-90
|
O-RING, yoke (2) |
ALL |
|
| 23 |
45902-00
|
SCREW (2) |
ALL |
|
