Lightning Models Parts Catalog
2004

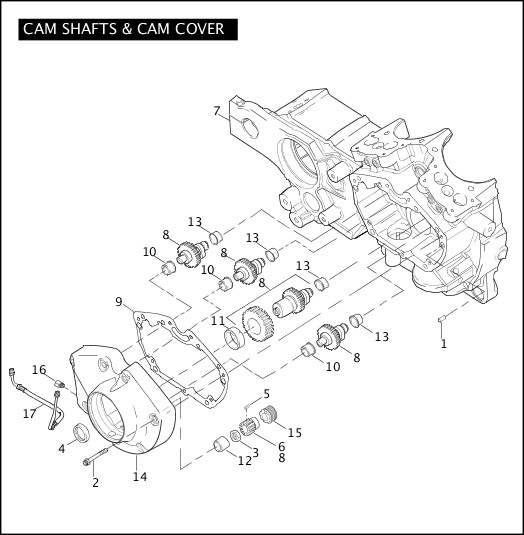

CAMSHAFTS & CAM COVER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 215 | DOWEL PIN (2) | ALL | |
| 2 | 4820A | SCREW, sems (7) | XB9S, XB9SL | |
| 2 | 4824 | SCREW, sems (black) (7) | XB12S | Oct 2015 |
| 3 | 7916A | JAM NUT | ALL | |
| 4 | 11124 | SEAL, oil | ALL | |
| 5 | 11317 | KEY, square | ALL | |
| 6 | 24047-00 | PINION GEAR | ALL | |
| 7 | 24439-02A | CRANKCASE SET, w/ bearings, bushings & retaining rings | ALL | |
| 8 | 25188-02A | E"" CAM GEAR SET, w/ 24047-00 | ALL | |
| 9 | 25353-00YB | GASKET, camshaft cover | ALL | |
| 10 | 25586-37 | BUSHING (3) | ALL | |
| 11 | 25588-91 | BUSHING | ALL | |
| 12 | 25593-74 | BUSHING, pinion gearshaft | ALL | |
| 13 | 25598-91 | BUSHING, cam gearshaft (4) | ALL | |
| 14 | 25778-04A | GEAR COVER ASSEMBLY, w/ 11124 (metallic) | XB12S | |
| 14 | 25782-02A | GEAR COVER ASSEMBLY, w/ 11124 (black) | XB9S, XB9SL | |
| 15 | 26318-88A | DRIVE GEAR, oil pump | ALL | |
| 16 | 62376-02 | FITTING, oil vent hose | ALL | |
| 17 | HS0024.1AD | OIL LINE, breather | ALL | May 2017 |
