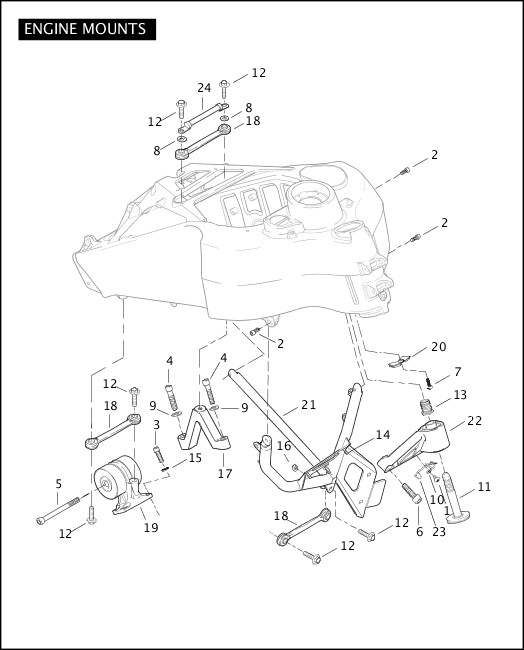

Index No.	Part No.	Description	Models	Obselete
	11604	RIVET NUT (used w/ L1511.4A8YT) (not illustrated) (4)	ALL
1	AA0404.11CXVB	SCREW	ALL	Nov 2014
2	AA0405.2CXZB	SCREW (3)	ALL
3	AA0508.2CZB	SCREW (4)	ALL	Feb 2017
4	AA0615.2CZB	SCREW (2)	ALL
5	AA0634.2CZB	SCREW	ALL	Jan 2017
6	AA0712.2CZB	SCREW (2)	ALL	Jun 2016
7	AN0805.5CSS	SCREW	ALL	Feb 2017
	AN1004.2CZ	SCREW (used w/ L1511.4A8YT) (not illustrated) (3)	ALL
8	BA0511.2Z	WASHER (2)	ALL
9	BA0613.2Z	WASHER (2)	ALL
10	B0613.1Z	WASHER	ALL
11	CA0013.02A8	BOLT, front isolator	ALL
12	CA0015.02A8	BOLT, flange head (6)	ALL
13	C0028.02A8A	THREAD INSERT	ALL
14	C0069.02A8	STUD, pem (3)	ALL	Nov 2014
	C0089.4A8	INSERT, threaded (used w/ L1511.4A8YT) (not illustrated) (3)	ALL
15	CB0013.02A8	WASHER (4)	ALL	Feb 2017
16	DA0500.2CZ	LOCKNUT	ALL
17	L0160.02A8A	MOUNT, center tiebar	ALL	Feb 2017
18	L0500.02A8	TIEBAR ASSEMBLY (3)	ALL	Feb 2017
19	L0502.02A8	ISOLATOR ASSEMBLY, rear	ALL
20	L0506.02A8	SNUBBER, front isolator upper	ALL	Feb 2017
21	L0511.02A8AYT	W"" BRACKET ASSEMBLY, w/ C0069.02A8 (use L1511.4A8YT) (designer villain black)	ALL
	L1511.4A8YT	W"" BRACKET ASSEMBLY, w/ 11604, AN1004.2CZ & C0089.4A8 (replaces L0511.02A8AYT) (designer villain black) (not illustrated)	ALL
22	L1501.02A8	ISOLATOR ASSEMBLY, front, w/ CA0013.02A8	ALL
23	N0012.1AAA	WIREFORM, clutch cable	ALL
24	Y0307.02A8	STRAP, ground	ALL	Feb 2017
