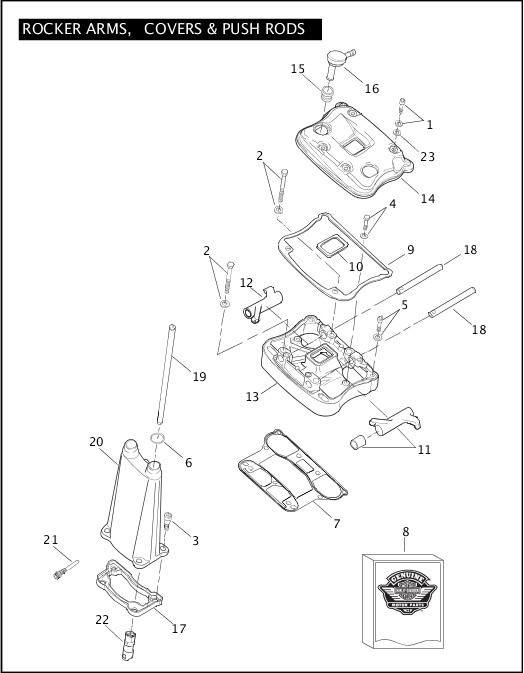

ROCKER ARMS, COVERS & PUSH RODS

Part Image Missing
Index No. Part No. Description Models Obselete
1 882 SCREW (8) XB9S, XB9SL, XB12S
2 1039 SCREW, hex flange head, w/ locker (8) XB9S, XB9SL, XB12S
3 3299Y SCREW, w/ washer (8) XB9S, XB9SL, XB12S
4 3849 SCREW (6) XB9S, XB9SL, XB12S
5 4718A SCREW, w/ washer (4) XB9S, XB9SL, XB12S
6 11190 O-RING, push rod cover, upper (4) XB9S, XB9SL, XB12S
7 16800-84A GASKET, rocker cover/cylinder head, valve & push rod sides (2) XB9S, XB9SL, XB12S
8 17036-91A GASKET KIT, rocker covers, w/ 16800-84A, 17353-89C, 17358-84B & 63858-49 XB9S, XB9SL, XB12S
9 17353-89C GASKET, rocker cover, lower (2) XB9S, XB9SL, XB12S
10 17358-84B GASKET, rocker cover, inner (2) XB9S, XB9SL, XB12S
11 17360-83A ROCKER ARM ASSEMBLY, w/ bushing, front intake & rear exhaust (2) XB9S, XB9SL, XB12S
12 17375-83A ROCKER ARM ASSEMBLY, w/ bushing, rear intake & front exhaust (2) XB9S, XB9SL, XB12S
13 17598-97YC ROCKER COVER, inner (2) XB9S, XB9SL, XB12S
14 17605-00YB ROCKER COVER, top front XB9S, XB9SL, XB12S
15 17606-00YA GROMMET (2) XB9S, XB9SL, XB12S
16 17607-00Y PCV VALVE (2) XB9S, XB9SL, XB12S
17 17608-00Y GASKET, push rod cover front XB9S, XB9SL, XB12S
18 17611-83 SHAFT, rocker arm (4) XB9S, XB9SL, XB12S
18 17642-02A ROCKER COVER, top rear (not illustrated) XB9S, XB9SL, XB12S
18 17649-02 GASKET, rear push rod cover (not illustrated) XB9S, XB9SL, XB12S
19 17908-02 PUSH ROD, exhaust (2) XB9S, XB9SL, XB12S
19 17909-02 PUSH ROD, intake (2) XB9S, XB9SL, XB12S
20 17979-02 COVER, push rod, rear XB9S, XB9SL, XB12S
20 17986-00Y COVER, push rod, front XB9S, XB9SL, XB12S
21 18532-00A SCREW, tappet anti-rotation (4) XB9S, XB9SL, XB12S
22 18538-99C HYDRAULIC LIFTER (4) XB9S, XB9SL, XB12S
23 63858-49 GASKET (8) XB9S, XB9SL, XB12S
>
