Lightning Models Parts Catalog
2004

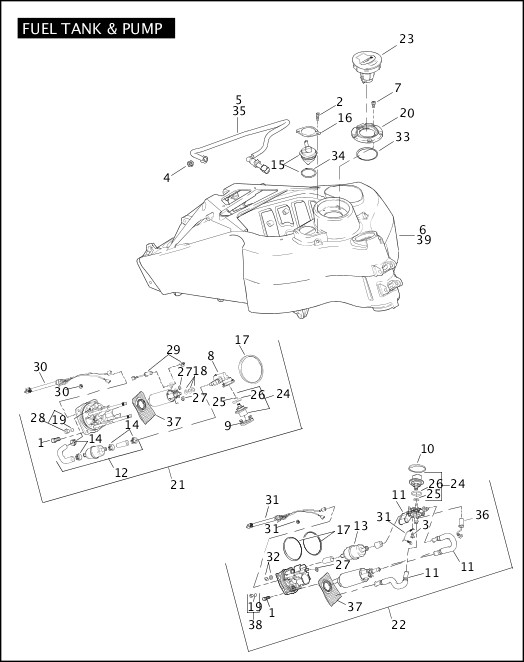

FUEL TANK & PUMP
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0406.2CZB | SCREW (4) | ALL | Feb 2017 |
| 2 | AN1004.2CZ | SCREW (2) | ALL | |
| 3 | CA0027.3A8 | SCREW (used w/ P0130.5A8) (2) | ALL | Jul 2015 |
| 4 | DA0500.8FZ | NUT | ALL | |
| 5 | HS0015.02A8 | SLEEVE | ALL | Jul 2015 |
| 6 | L0600.1AC | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (Domestic) (Note: Fuel pump & lines NOT included. See Frame for more information on kit.) | XB12S | Mar 2016 |
| L0600.2AD | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (Domestic) (See Fuel Tank & Pump for more information on kit.) | XB9S, XB9SL | Mar 2016 |
|
| L0605.1AC | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (California) (Note: Fuel pump & lines NOT included. See Frame for more information on kit.) | XB12S | Mar 2016 |
|
| L0605.2AD | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (California) (Note: Fuel pump & lines NOT included. See Frame for more information on kit.) | XB9S, XB9SL | Mar 2016 |
|
| 7 | P0002.02A8 | SCREW (5) | ALL | |
| 8 | P0019.02A8 | HOUSING, regulator (used w/ P0130.02A8) | ALL | |
| 9 | P0045.02A8 | CLIP, regulator (used w/ P0130.02A8) | ALL | Nov 2014 |
| 10 | P0045.3A8 | CLIP, regulator (used w/ P0130.5A8) | ALL | Jul 2015 |
| 11 | P0080.3A8 | HOUSING, regulator, w/ hoses (used w/ P0130.5A8) | ALL | |
| 12 | P0100.02A8 | FUEL FILTER, in-line, w/ hoses (used w/ P0130.02A8) | ALL | |
| 13 | P0101.02A8 | FUEL FILTER, in-line (used w/ P0130.5A8) | ALL | |
| 14 | P0104.02A8 | CLAMP (used w/ P0130.02A8) (5) | ALL | |
| 15 | P0115.02A8B | FUEL CELL VENT, w/ fuel cell vent o-ring | ALL | |
| 16 | P0119.02A8A | RETAINING PLATE, fuel cell vent | ALL | |
| 17 | P0121.02A8A | O-RING (2) | ALL | |
| 18 | P0125.02A8 | O-RING (used w/ P0130.02A8) (3) | ALL | Nov 2014 |
| 19 | P0127.02A8 | O-RING | ALL | Jul 2015 |
| 20 | P0128.02A8A | FILLER NECK RING, fuel cap | ALL | |
| 21 | P0130.02A8 | FUEL PUMP ASSEMBLY (use P0130.5A8) | ALL | |
| 22 | P0130.5A8 | FUEL PUMP ASSEMBLY (replaces P0130.02A8) | ALL | |
| 23 | P0153.02A8 | CAP, fuel tank, w/ key(s) (Domestic, Canada, Australia, England, Europe, Japan) | ALL | |
| P0164.K | SEAL, pump outlet (used w/ P0130.5A8) (not illustrated) | ALL | ||
| 24 | P0166.K | REGULATOR, w/ o-rings (used w/ P0130.02A8) | ALL | |
| 25 | P0177.KA | O-RING, small regulator | ALL | Jul 2015 |
| 26 | P0178.KA | O-RING, large regulator (used w/ P0130.02A8) | ALL | Jul 2015 |
| 27 | P0187.02A8 | E-CLIPS (4) | ALL | Nov 2016 |
| 28 | P0189.02A8A | DRAIN PLUG, w/ o-rings | ALL | Nov 2014 |
| 29 | P0191.02A8 | SENSOR ASSEMBLY, w/ screw kit (used w/ P0130.02A8) | ALL | Nov 2014 |
| 30 | P0194.02A8 | WIRE ASSEMBLY, w/ screw kit (used w/ P0130.02A8) | ALL | Nov 2014 |
| 31 | P0194.3A8 | WIRE ASSEMBLY, w/ screw kit (used w/ P0130.5A8) | ALL | |
| 32 | P0198.02A8 | O-RING KIT, banjo stud (used w/ P0130.5A8) | ALL | |
| 33 | P0228.02A8 | O-RING, fuel cap retaining ring | ALL | |
| 34 | P0229.02A8 | O-RING, fuel cell vent | ALL | |
| P0356.3A8 | CLAMP, fuel filter (used w/ P0130.5A8) (not illustrated) | ALL | Jul 2015 |
|
| 35 | P0464.02A8A | FUEL LINE ASSEMBLY, w/ HS0015.02A8 | ALL | |
| 36 | P0789.KA | SENSOR, low level (used w/ P0130.5A8) | ALL | |
| 37 | P0806.K | FILTER, fuel pump, internal (used w/ P0130.02A8) | ALL | |
| 38 | P1203.3A8 | DRAIN PLUG, w/ o-ring (used w/ P0130.5A8) | ALL | |
| 39 | L0601.1AC | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (Canada) (Note: Fuel pump & lines NOT included. See Frame for more information on kit.) | XB12S | Mar 2016 |
| L0601.2AD | FRAME/FUEL TANK ASSEMBLY KIT, front w/ bearing races & labels (Canada) (Note: Fuel pump & lines NOT included. See Frame for more information on kit.) | XB9S | Mar 2016 |
|
| L0602.02A8 | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (England, Europe) (Note: Fuel pump & lines NOT included. See Frame for more information on kit.) | XB9S | ||
| L0602.1AA | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (England, Europe) (Note: Fuel pump & lines NOT included. See Frame for more information on kit.) | XB12S | ||
| L0603.02A8 | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (Australia) (Note: Fuel pump & lines NOT included. See Frame for more information on kit.) | XB9S | ||
| L0603.1AA | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (Australia) (Note: Fuel pump & lines NOT included. See Frame for more information on kit.) | XB12S | Mar 2016 |
|
| L0604.1AC | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (Japan) (Note: Fuel pump & lines NOT included. See Frame for more information on kit.) | XB12S | Mar 2016 |
|
| L0604.1AD | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels (Japan) (Note: Fuel pump & lines NOT included. See Frame for more information on kit.) | XB9S | Mar 2016 |
