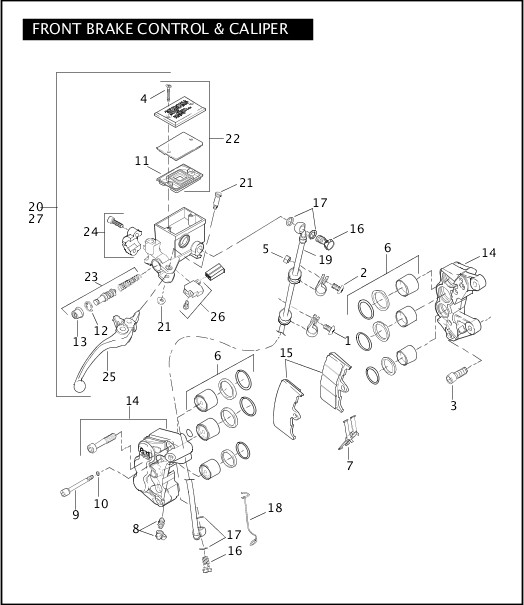

Index No.	Part No.	Description	Models	Obselete
1	AA0404.11CVB	SCREW	ALL	Nov 2014
2	AA0406.11CVB	SCREW	ALL
3	AA0608.2CXZB	SCREW, front brake caliper (2)	ALL
4	CA0200.R	SCREW, front master cylinder cover (2)	ALL
5	DA0400.2CZ	LOCKNUT	ALL
6	H0020.02A8	PISTON SET	ALL
7	H0021.02A8	PAD SPRING, caliper	ALL
8	H0022.F	FITTING, brake bleeder, w/ cap	ALL
9	H0031.02A8	PIN HANGER SET, caliper	ALL
10	H0032.02A8	STOPPER, front caliper	ALL
11	H0035.9	DIAPHRAGM COVER, front master cylinder	ALL
12	H0054.9	CIRCLIP, brake piston	ALL
13	H0055.9	BOOT, brake piston	ALL
14	H0110.02A8	BRAKE CALIPER ASSEMBLY, front, w/ 6, 7, 8, 9, 10 &15	ALL
15	H0300.02A8	BRAKE PAD	ALL
16	H0405.9B	BANJO BOLT, master cylinder (2)	ALL
17	H0412.01A0	WASHER (4)	ALL
18	H0418.02A8A	WIRE FORM, brake line	ALL	Feb 2017
19	H1531.1ADA	BRAKE LINE ASSEMBLY, front, w/ H0405.9B & H0412.01A0	ALL
20	N0200.02A8	MASTER CYLINDER ASSEMBLY, front, complete, w/ 12, 13, 21, 22, 23, 24, 25 & 26 (Australia, Canada, Domestic, England, Europe)	ALL
21	N0203.9	PIVOT BOLT KIT, w/ nut	ALL
22	N0210.R	CAP SET	ALL
23	N0220.F	REPAIR KIT, front master cylinder	ALL
24	N0259.9	CLAMP, front master cylinder	ALL
25	N1202.02A8	BRAKE LEVER KIT, front master cylinder, w/ N0203.9	ALL
26	Y0810.9	SWITCH KIT, brake lever	ALL
27	N0096.02A8	MASTER CYLINDER ASSEMBLY, complete, w/ 12, 13, 21, 22, 23, 24, 25, 26 & label (Japan)	XB12S, XB9S
