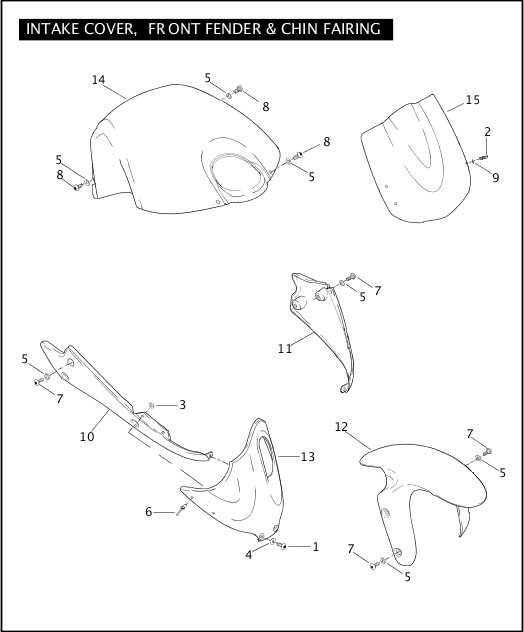

INTAKE COVER, FRONT FENDER & CHIN FAIRING
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0404.11CXVB | SCREW (2) | ALL | Nov 2014 |
| 2 | AN1005.3FSS | SCREW (4) | ALL | |
| 3 | BA0308.1BL | WASHER, black (4) | ALL | |
| 4 | BA0409.6BL | WASHER (2) | ALL | |
| 5 | BA0509.6 | WASHER, nylon (13) | ALL | |
| C0052.1AD | PAD, adhesive (not illustrated) | ALL | ||
| 6 | C0520.02A8 | RIVET, black (4) | ALL | |
| 7 | CA0012.02A8 | SCREW, shoulder (9) | ALL | |
| 8 | CA0018.02A8 | SCREW, shoulder (4) | ALL | |
| 9 | CB0009.02A8 | WASHER (4) | ALL | |
| 10 | M0647.02A8AMAL | CHIN FAIRING, right (sunfire yellow) | XB9S, XB9SL | |
| M0647.02A8AMW | CHIN FAIRING, right (midnight black) | ALL | Feb 2017 |
|
| M0647.02A8AMBK | CHIN FAIRING, right (racing red) | XB12S | ||
| 11 | M0648.02A8AMAL | CHIN FAIRING, left (sunfire yellow) | XB9S, XB9SL | Feb 2017 |
| M0648.02A8AMW | CHIN FAIRING, left (midnight black) | ALL | Feb 2017 |
|
| M0648.02A8AMBK | CHIN FAIRING, left (racing red) | XB12S | ||
| 12 | M0662.02A8MAL | FENDER, front (sunfire yellow) | XB9S, XB9SL | Feb 2017 |
| M0662.02A8MW | FENDER, front (midnight black) | ALL | Feb 2017 |
|
| M0662.02A8MBK | FENDER, front (racing red) | XB12S | ||
| 13 | M0698.02A8AMBQ | CHIN FAIRING, center (magnesium tone) | XB12S | |
| M0698.02A8AMBF | CHIN FAIRING, center (charcoal silver) | XB9S, XB9SL | Feb 2017 |
|
| 14 | M1224.1AAMBK | INTAKE COVER ASSEMBLY, w/ decals (racing red) | XB12S | |
| M1224.1AAMW | INTAKE COVER ASSEMBLY, w/ decals (midnight black) | XB12S | ||
| M1224.1ADMAL | INTAKE COVER ASSEMBLY, w/ decals (sunfire yellow) | XB9S, XB9SL | ||
| M1224.1ADMW | INTAKE COVER ASSEMBLY, w/ decals (midnight black) | XB9S, XB9SL | ||
| 15 | M1600.1ACMBK | WINDSCREEN KIT, w/ C0052.1AD & decal (racing red) | XB12S | |
| M1600.1ACMW | WINDSCREEN KIT, w/ C0052.1AD & decal (midnight black) | XB12S | ||
| M1600.1ADMAL | WINDSCREEN KIT, w/ C0052.1AD & decal (sunfire yellow) | XB9S, XB9SL | ||
| M1600.1ADMW | WINDSCREEN KIT, w/ C0052.1AD & decal (midnight black) | XB9S, XB9SL |
