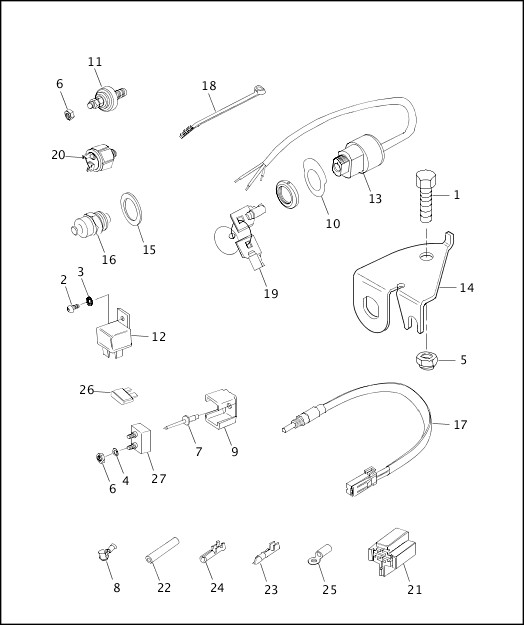

Index No.	Part No.	Description	Models	Obselete
1	2937Y	BOLT	ALL	Feb 2010
2	AN0803.3CBZ	SCREW (2)	ALL	Feb 2010
3	BN0805.4Z	LOCKWASHER (2)	ALL	Feb 2010
4	BN1005.8Z	LOCKWASHER (2)	ALL	Feb 2010
5	DA0600.2CZ	LOCKNUT	ALL
6	7638	NUT (3)	ALL
7	C0527.2	POP RIVET, circuit breaker clip	ALL
8	9905	TERMINAL, cap type, 1/4 diameter	ALL
9	9952	CLIP, circuit breaker	ALL
10	Y0619.C	LABEL, ignition switch	ALL	Feb 2010
11	26554-77B	SWITCH, oil pressure indicator	ALL
12	31504-91B	RELAY, starter & ignition (2)	ALL
13	Y0610.C	LOCKSET, ignition, w/ keys	ALL
14	32470-96Y	BRACKET, ignition switch	ALL
15	33043-80	WASHER	ALL
16	33900-59C	SWITCH, neutral indicator, w/ washer	ALL
17	50181-96Y	SWITCH, sidestand	ALL
18	Y0303.2B	CABLE STRAP	ALL
19	71452-91A	KEY (specify 4-digit key code)	ALL
20	72023-51E	SWITCH KIT, stoplamp	ALL
21	72046-79	HOUSING SOCKET, relay (2)	ALL
22	Y0355.4	INSULATING SLEEVE, male bullet connector (2)	ALL	May 2010
	Y0356.4	INSULATING SLEEVE, female bullet connector (2)	ALL	May 2010
23	Y0357.3A	CONNECTOR, male bullet (2)	ALL	May 2010
24	Y0358.3A	CONNECTOR, female bullet (2)	ALL	Feb 2010
25	Y0360.2	WIRE TERMINAL, ring type, 1/4 inch diameter hole, 18 gauge	ALL	May 2010
	Y0327.8	WIRE TERMINAL, ring type, 3/16 inch diameter hole, 14-16 gauge	ALL	Feb 2010
26	72347-94	FUSE, 15 amp (5)	ALL
27	74599-77B	CIRCUIT BREAKER, 30 amp	ALL
28	Y0200.9	MAIN WIRING HARNESS (not illustrated)	S1 1996	Feb 2010
	69559-98Y	MAIN WIRING HARNESS (not illustrated)	S1 1997
