1996-1997 Buell S1 Lightning Parts Catalog
1997

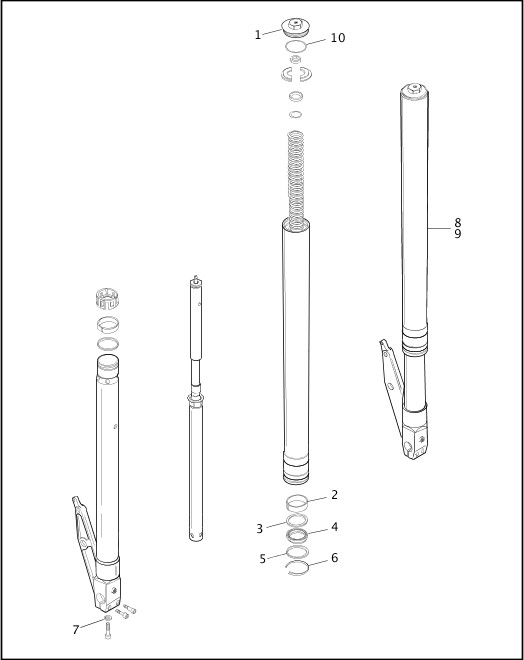

FRONT FORK
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 45220-96Y | FORK CAP, compression | ALL | |
| 45221-96Y | FORK CAP, rebound | ALL | ||
| 2 | J9129.8 | BUSHING, lower (2) | ALL | |
| 3 | J9130.8 | SUPPORT RING (2) | ALL | Feb 2010 |
| 4 | J9131.8 | SEAL, oil (2) | ALL | |
| 5 | J9132.8 | SPACER RING (2) | ALL | Feb 2010 |
| 6 | J9133.8 | RETAINING RING (2) | ALL | Feb 2010 |
| 7 | J9142.8 | WASHER, copper (2) | ALL | Nov 2014 |
| 8 | J0120.9L | FORK SLIDER & TUBE ASSEMBLY, left | ALL | Oct 2011 |
| 9 | J0120.9R | FORK SLIDER & TUBE ASSEMBLY, right | ALL | Feb 2010 |
| 10 | J9144.8 | O-RING, fork cap (2) | ALL | Nov 2014 |
