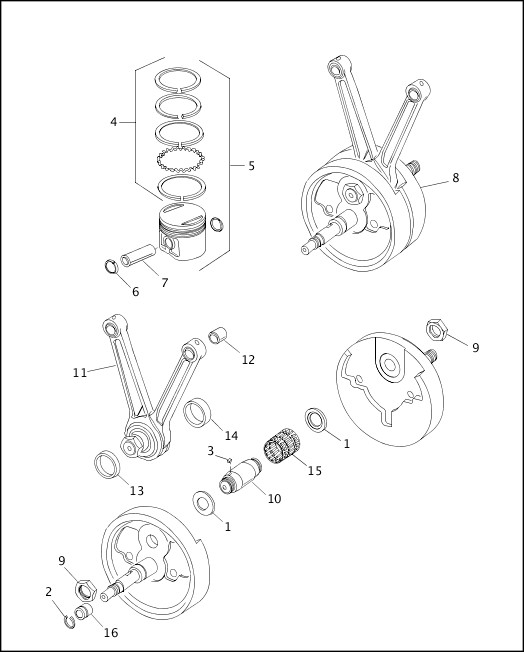

| 1 |
6508
|
WASHER, crank pin boss (2) |
ALL |
|
| 2 |
11177A
|
RETAINING RING |
ALL |
|
| 3 |
11218
|
KEY, crank pin |
ALL |
|
| 4 |
21920-83
|
PISTON RING SET, standard (2) |
ALL |
|
|
21921-83
|
PISTON RING SET, 0.005 O.S. (2) |
ALL |
|
|
21922-83
|
PISTON RING SET, 0.010 O.S. (2) |
ALL |
|
|
21923-83
|
PISTON RING SET, 0.020 O.S. (2) |
ALL |
|
|
21924-83
|
PISTON RING SET, 0.030 O.S. (2) |
ALL |
|
| 5 |
22243-88A
|
PISTON AND RINGS ASSEMBLY, standard (2) |
ALL |
|
|
22205-88A
|
PISTON AND RINGS ASSEMBLY, 0.005 O.S. (2) |
ALL |
|
|
22216-88A
|
PISTON AND RINGS ASSEMBLY, 0.010 O.S. (2) |
ALL |
|
|
22220-88A
|
PISTON AND RINGS ASSEMBLY, 0.020 O.S. (2) |
ALL |
|
|
22225-88A
|
PISTON AND RINGS ASSEMBLY, 0.030 O.S. (2) |
ALL |
|
| 6 |
22589-83B
|
LOCK RING, piston pin (4) |
ALL |
|
| 7 |
22765-88
|
PISTON PIN (2) |
ALL |
|
| 8 |
23899-96Y
|
SET OF FLYWHEELS AND SHAFTS, w/ rods |
ALL |
|
| 9 |
23980-98
|
NUT, crank pin (2) |
ALL |
|
| 10 |
23960-80A
|
CRANK PIN, standard |
ALL |
|
|
23948-87
|
CRANK PIN, 0.001 O.S. |
ALL |
|
|
23949-87
|
CRANK PIN, 0.002 O.S. |
ALL |
|
| 11 |
24275-86A
|
SET OF CONNECTING RODS, w/ bearings, crank pin & nuts |
ALL |
|
| 12 |
24331-36
|
BUSHING, piston pin, standard (2) |
ALL |
|
|
24332-36
|
BUSHING, piston pin, 0.01 O.S. (2) |
ALL |
|
| 13 |
24341-52A
|
BEARING RACE, rear connecting rod, lower (2) |
ALL |
|
| 14 |
24352-52A
|
BEARING RACE, front connecting rod, lower (2) |
ALL |
|
| 15 |
24354-87A
|
BEARING SET, connecting rods |
ALL |
|
| 16 |
24658-87
|
INNER RING |
ALL |
|
