1996-1997 Buell S1 Lightning Parts Catalog

1997
  1. Home
  2. Part
  3. Catalogs

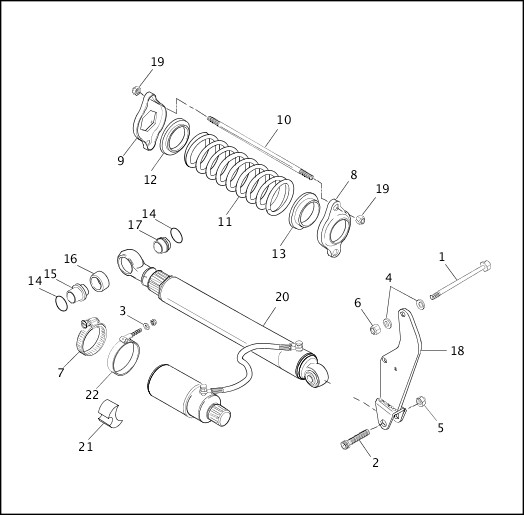

REAR SHOCK ABSORBER

Part Image Missing
Index No. Part No. Description Models Obselete
1 AA0644.1CZ BOLT (2) ALL
2 A1245.2CZ SCREW (2) ALL
Oct 2013
3 BA0409.1Z WASHER ALL
4 BA0613.2Z WASHER (3) ALL
5 D1200.2CZ LOCKNUT (2) ALL
6 DA0600.3CZ LOCKNUT (2) ALL
Feb 2010
7 25495-94Y CLAMP ALL
8 K0413.F DRAWING RING, front ALL
9 K0414.F DRAWING RING, rear ALL
10 K0408.F DRAWING ROD (2) ALL
11 K0409.G SPRING, shock absorber ALL
12 45226-96Y SPRING RETAINER, steel ALL
13 45227-96Y SPRING RETAINER, nylon ALL
14 45228-96Y SEAL (4) ALL
15 45229-96Y ADAPTOR BUSHING (2) ALL
16 45230-96Y HEIM JOINT (2) ALL
17 45988-96Y BUSHING (2) ALL
18 K0407.8H SHOCK MOUNT ALL
Mar 2012
19 50116-94Y NUT (4) ALL
20 54541-96Y SHOCK ABSORBER, complete, w/ spring assembly ALL
21 K0412.8 MOUNT, shock reservoir ALL
22 S0120.3 CLAMP ALL
Feb 2010
>
