1996-1997 Buell S1 Lightning Parts Catalog

1997
  1. Home
  2. Part
  3. Catalogs

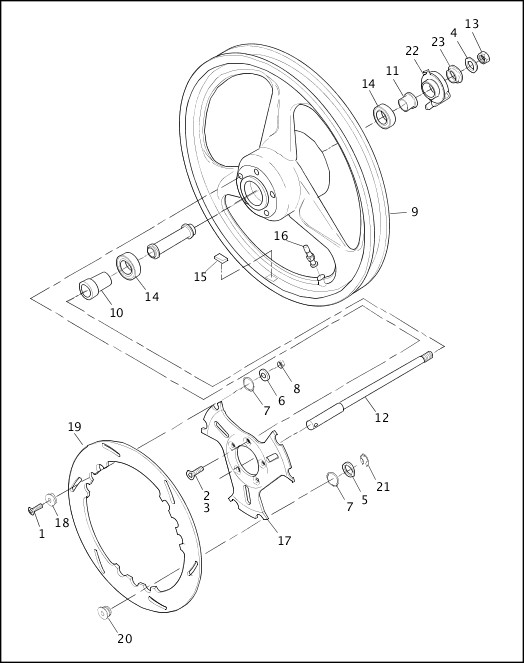

FRONT WHEEL

Part Image Missing
Index No. Part No. Description Models Obselete
1 AA0405.5CZ SCREW (used w/ P/M aluminum wheels) (6) S1 1996
Nov 2014
2 AA0506.5CZ SCREW (used w/ Marchesini and cast alloy wheels) (5) ALL
Nov 2014
3 AA0508.5CZ SCREW (used w/ P/M wheels) (5) ALL
4 B1730.1Z WASHER ALL
Nov 2014
5 BA1418.9SS WASHER (6) S1 1997
6 BA0416.9SS WASHER (6) S1 1996
7 BW856.9 SPRING WASHER (6) ALL
May 2012
8 DA0400.3CZ LOCKNUT (6) S1 1996
9 41050-96Y WHEEL ASSEMBLY, Marchesini, front, w/ bearings, inner spacer & valve stem (silver) S1 1996
41050-97Y WHEEL ASSEMBLY, cast alloy, front, w/ bearings, inner spacer & valve stem (silver) S1 1997
G0111.8 WHEEL ASSEMBLY, P/M aluminum, front, w/ bearings, inner spacer & valve stem (not illustrated) ALL
Feb 2010
10 G0112.3A SPACER, axle right ALL
Nov 2014
11 41129-94Y SPACER, axle left ALL
12 G0120.2C AXLE, front ALL
Nov 2014
13 D1600.1FXZ NUT ALL
14 E0041.T BEARING, wheel (2) ALL
15 G0312.8 WHEEL WEIGHT (as required) ALL
Jul 2015
16 G0313.8 VALVE STEM ALL
Nov 2014
17 H1130.9 BRAKE CARRIER, front ALL
Nov 2014
18 H0500.9B DRIVE PIN, brake (6) S1 1996
19 H0130.9B BRAKE ROTOR KIT, front, w/ rotor, 5, 7, 17, 20 & 21 ALL
Sep 2012
20 45176-97Y DRIVE PIN, brake (6) S1 1997
21 45177-97Y E-CLIP, brake drive pin (6) S1 1997
22 67127-84A DRIVE UNIT, speedometer ALL
23 67322-94Y SPACER, speedometer drive ALL
>
