1996-1997 Buell S1 Lightning Parts Catalog
1997

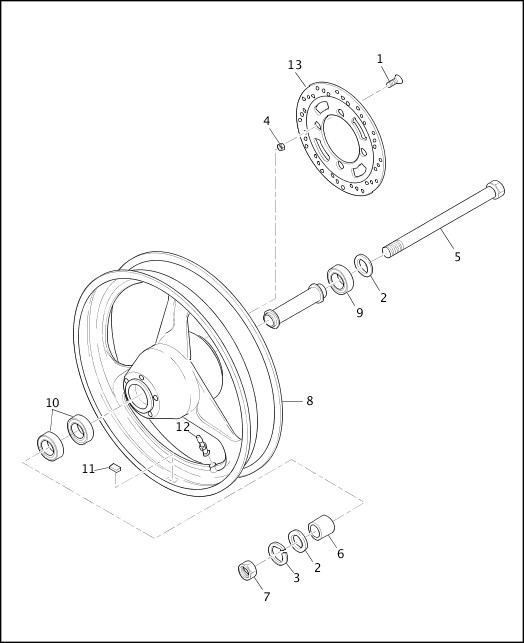

REAR WHEEL
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | A1025.5CZ | SCREW (4) | ALL | Nov 2014 |
| 2 | 5710 | WASHER (2) | ALL | |
| 3 | 7016Y | LOCKWASHER | ALL | Feb 2010 |
| 4 | D1000.13CZ | LOCKNUT, rotor mount (P/M aluminum wheels) (4) | ALL | Nov 2014 |
| 5 | G0321.3C | AXLE, rear | ALL | Nov 2014 |
| 6 | G0323.8 | SPACER, axle, right | ALL | Apr 2010 |
| 7 | G0327.3A | NUT | ALL | Nov 2014 |
| 8 | 43123-96Y | WHEEL ASSEMBLY, Marchesini, rear, w/ bearings, inner spacer & valve stem (silver) | S1 1996 | |
| 43123-97Y | WHEEL ASSEMBLY, cast alloy, rear, w/ bearings, inner spacer & valve stem (silver) | S1 1997 | ||
| G0310.8A | WHEEL ASSEMBLY, P/M aluminum, rear, w/ bearings, inner spacer & valve stem (not illustrated) | ALL | Feb 2010 |
|
| 9 | E62205 | BEARING, wheel, left (Marchesini and cast alloy wheels) | ALL | |
| 10 | E6205 | BEARING, wheel (right side-Marchesini & cast alloy wheels) (2) | ALL | |
| E6205 | BEARING, wheel (P/M wheels) (3) | ALL | ||
| 11 | G0312.8 | WHEEL WEIGHT (as required) | ALL | Jul 2015 |
| 12 | G0313.8 | VALVE STEM | ALL | Nov 2014 |
| 13 | H0150.8QQ | BRAKE ROTOR, rear | ALL | Nov 2014 |
