1996-1997 Buell S1 Lightning Parts Catalog

1997
  1. Home
  2. Part
  3. Catalogs

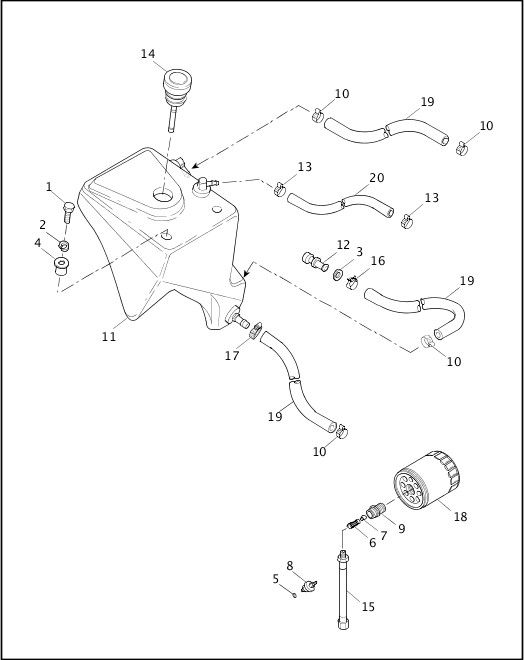

OIL TANK & FILTER

Part Image Missing
Index No. Part No. Description Models Obselete
1 AA0507.1CZ BOLT (4) ALL
2 6161Y LOCKWASHER (4) ALL
Feb 2010
3 BA0610.7 RUBBER WASHER ALL
Feb 2010
4 Q0117.2 WELLNUT (4) ALL
5 7629 NUT ALL
6 26436-90A SPRING ALL
7 26437-86B BALL ALL
8 26554-77B SWITCH, oil pressure indicator ALL
9 33117-91A ADAPTOR, oil filter ALL
10 Q0115.0 CLAMP, hose, 3/8 inch (4) ALL
11 Q0100.9B OIL TANK ALL
12 Q0103.9A PLUG, drain ALL
13 Q0123.0 CLAMP, hose, 1/4 inch (2) ALL
14 Q0111.9Q FILLER CAP, w/ dipstick ALL
Jul 2012
15 62631-91 HOSE, oil pump to filter ALL
16 C0900.9 CLAMP, spring type, 3/8 inch ALL
17 C0540.9 CLAMP, worm gear type, 3/8 inch ALL
18 63805-80A OIL FILTER ALL
19 63500-68 HOSE, 3/8 inch I.D. x 5/8 inch O.D. (rubber) (25 feet) ALL
20 63501-68B HOSE, 1/4 inch I.D. x 1/2 inch O.D. (rubber) (25 feet) ALL
>
