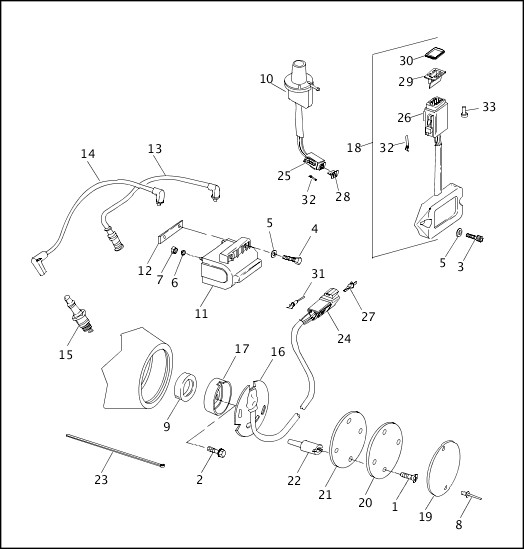

Index No.	Part No.	Description	Models	Obselete
1	1601	SCREW (2)	ALL
2	2611C	BOLT	ALL
3	AA0406.2CBZ	SCREW (2)	ALL
4	AA0418.1CZ	SCREW (2)	ALL
5	B0613.1Z	WASHER (3)	ALL
6	BN1006.4Z	LOCKWASHER (2)	ALL	Feb 2010
7	7638	NUT (2)	ALL
8	8699	POP RIVET (2)	ALL
9	11124	SEAL	ALL
10	26555-94	VACUUM SWITCH	ALL
11	31614-83A	IGNITION COIL	ALL
12	31727-85	PLATE, ignition coil mounting	ALL
13	31986-86A	CABLE, spark plug, front	ALL
14	31995-83	CABLE, spark plug, rear	ALL
15	32362-04	SPARK PLUG, No. 6R12 (2)	ALL
16	32400-94A	SENSOR ASSEMBLY, w/ terminal pins	ALL
17	32402-83	TRIGGER ROTOR	ALL
18	N0306.9A	IGNITION MODULE, w/ connector assembly	ALL	Feb 2010
19	32550-96Y	COVER, timer	ALL
20	T0115.8Q	INNER COVER	ALL	Apr 2010
21	32591-80	GASKET, ignition	S1 1996
22	32606-82	STUD, timer plate (2)	ALL
23	Y0303.2B	CABLE STRAP	ALL
24	72103-94BK	RECEPTACLE, 3-pin (black)	ALL
25	72112-94BK	PLUG, 2-way	ALL
26	72118-94BK	PLUG, 8-way (black)	ALL
27	72143-94	SECONDARY LOCK, 3-pin receptacle (black)	ALL
28	72152-94	SECONDARY LOCK, 2-way plug	ALL
29	72158-94	LOCK, 8-way plug	ALL
30	72178-94	SEAL, front, 8-way plug	ALL
31	72190-94	TERMINAL, pin (3)	ALL
32	72191-94	TERMINAL, socket (9)	ALL
33	72195-94	SEAL PIN	ALL
