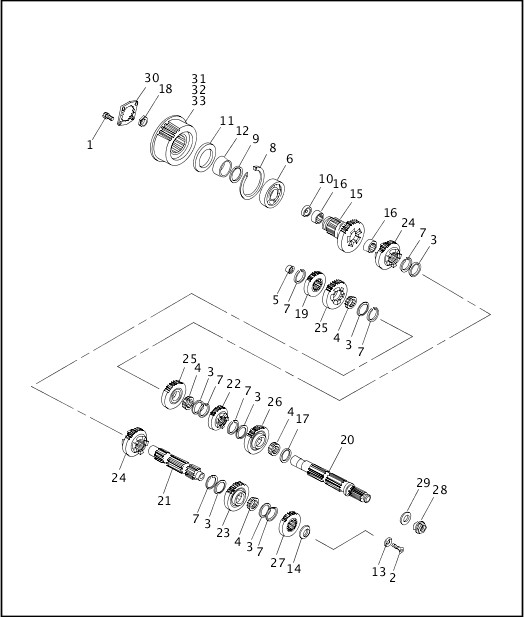

| 1 |
3594
|
SCREW (2) |
ALL |
|
| 2 |
3675
|
SCREW |
ALL |
|
| 3 |
6003
|
WASHER (6) |
ALL |
|
| 4 |
8876A
|
BEARING (4) |
ALL |
|
| 5 |
8977
|
BEARING, closed end |
ALL |
|
| 6 |
8996A
|
BEARING, ball |
ALL |
|
| 7 |
11067
|
RETAINING RING (7) |
ALL |
|
| 8 |
11161
|
RETAINING RING |
ALL |
|
| 9 |
11165
|
QUAD SEAL |
ALL |
|
| 10 |
12030
|
OIL SEAL |
ALL |
|
| 11 |
12067B
|
OIL SEAL |
ALL |
|
| 12 |
33344-94
|
SPACER |
ALL |
|
| 13 |
35020-89
|
RETAINER, countershaft |
ALL |
|
| 14 |
35022-89A
|
SPACER |
ALL |
|
| 15 |
35034-94
|
GEAR ASSEMBLY, fifth-mainshaft, w/ 10 & 16 |
ALL |
|
| 16 |
35051-89A
|
BEARING, needle (2) |
ALL |
|
| 17 |
35063-89
|
SPACER |
ALL |
|
| 18 |
35211-91B
|
NUT, sprocket |
ALL |
|
| 19 |
35633-94
|
GEAR, fifth-countershaft |
ALL |
|
| 20 |
35640-89
|
MAINSHAFT |
ALL |
|
| 21 |
35641-89
|
COUNTERSHAFT |
ALL |
|
| 22 |
35762-89A
|
GEAR, first-mainshaft |
ALL |
|
| 23 |
35763-89A
|
GEAR, first-countershaft |
ALL |
|
| 24 |
35771-94
|
GEAR, second-mainshaft, third-countershaft (2) |
ALL |
|
| 25 |
35772-94
|
GEAR, third-mainshaft, second-countershaft (2) |
ALL |
|
| 26 |
35773-94
|
GEAR, fourth-mainshaft |
ALL |
|
| 27 |
35775-94
|
GEAR, fourth-countershaft |
ALL |
|
| 28 |
37495-91
|
NUT, mainshaft |
ALL |
|
| 29 |
37870-91
|
SPRING WASHER |
ALL |
|
| 30 |
40251-92A
|
RETENTION PLATE |
ALL |
|
| 31 |
40285-91B
|
SPROCKET KIT, 27T (belt) w/ 1, 11, 12, 18 & 30 |
ALL |
|
| 32 |
40288-95
|
SPROCKET, transmission, 27T |
ALL |
|
| 33 |
40205-95
|
SPROCKET, transmission, 29T |
S1 1997 |
|
