1996-1997 Buell S1 Lightning Parts Catalog
1997

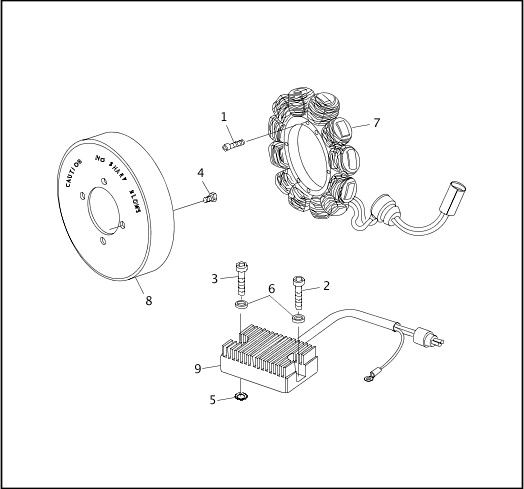

ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 2720 | SCREW (4) | ALL | |
| 2 | AA0406.2CBZ | SCREW | ALL | |
| 3 | AA0408.2CBZ | SCREW | ALL | Feb 2010 |
| 4 | 4751 | SCREW (4) | ALL | |
| 5 | BA0408.4Z | LOCKWASHER | ALL | Apr 2012 |
| 6 | BA0613.2Z | WASHER (2) | ALL | |
| 7 | 29967-89C | STATOR | ALL | |
| 8 | 32413-92C | ROTOR, w/ 4 | ALL | |
| 9 | 74523-91 | REGULATOR, voltage | ALL |
