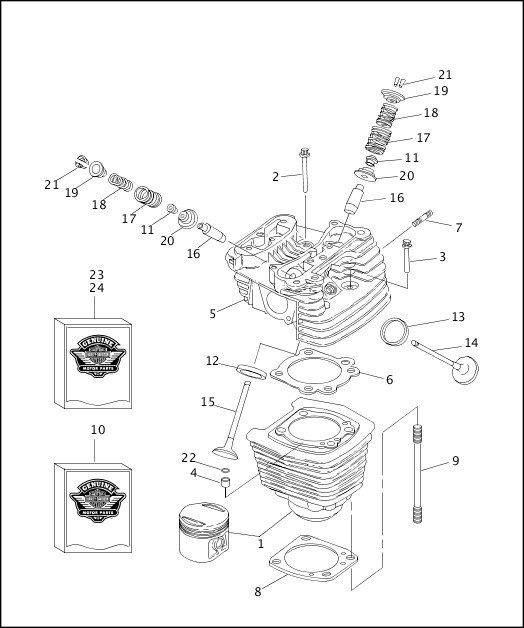

| 1 |
16444-94Y
|
CYLINDER, w/ piston, 1200cc (2) |
ALL |
|
|
16554-92A
|
CYLINDER, 1200cc (2) |
ALL |
|
| 2 |
16478-85A
|
SCREW, internal thread (4) |
ALL |
|
| 3 |
16480-92A
|
SCREW, internal thread (4) |
ALL |
|
| 4 |
16573-83A
|
INSERT, cylinder stud (4) |
ALL |
|
| 5 |
16703-96YA
|
HEAD, front cylinder, w/ valve guides & seats |
ALL |
|
|
16704-96YA
|
HEAD, rear cylinder, w/ valve guides & seats |
ALL |
|
| 6 |
16770-84F
|
GASKET, cylinder head (2) |
ALL |
|
| 7 |
16715-83
|
STUD, exhaust port (4) |
ALL |
|
| 8 |
16774-86D
|
GASKET, cylinder base (2) |
ALL |
|
| 9 |
16832-86C
|
STUD, cylinder base (8) |
ALL |
|
| 10 |
17026-91D
|
GASKET KIT, engine overhaul |
ALL |
|
|
17032-91
|
GASKET KIT, top overhaul |
ALL |
|
|
17036-91A
|
GASKET KIT, rocker covers |
ALL |
|
| 11 |
18001-83B
|
SEAL, valve (4) |
ALL |
|
| 12 |
18022-96YA
|
INSERT, exhaust valve seat (2) |
ALL |
|
| 13 |
18020-87A
|
INSERT, intake valve seat (2) |
ALL |
|
| 14 |
18023-87
|
INTAKE VALVE (2) |
ALL |
|
| 15 |
18024-87A
|
EXHAUST VALVE (2) |
ALL |
|
| 16 |
18113-96YA
|
VALVE GUIDE, intake & exhaust (4) |
ALL |
|
| 17 |
18201-83
|
VALVE SPRING, outer (4) |
ALL |
|
| 18 |
18202-83
|
VALVE SPRING, inner (4) |
ALL |
|
| 19 |
18219-83A
|
COLLAR, valve spring, upper (4) |
ALL |
|
| 20 |
18222-83A
|
COLLAR, valve spring, lower (4) |
ALL |
|
| 21 |
18229-83A
|
RETAINER, valve collar (8) |
ALL |
|
| 22 |
26432-76A
|
O-RING, cylinder stud insert (4) |
ALL |
|
| 23 |
24400-96Y
|
ENGINE ASSEMBLY, complete, 1200cc |
S1 1996 |
|
|
24400-97Y
|
ENGINE ASSEMBLY, complete, 1200cc |
S1 1997 |
|
| 24 |
24403-97Y
|
ENGINE ASSEMBLY, complete, 1200cc |
S1 1997 |
|
