Firebolt Models Parts Catalog
2004

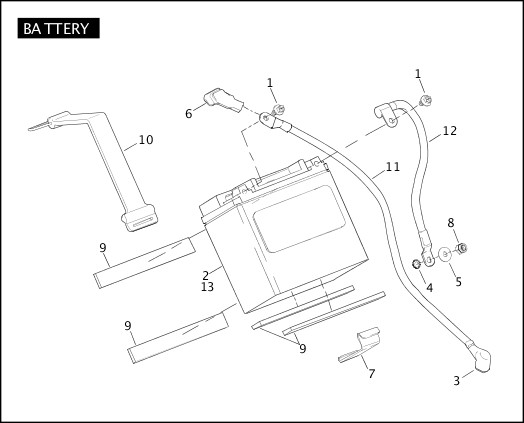

BATTERY
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 4312C | SCREW (2) | ALL | |
| 2 | 65948-00A | BATTERY, w/ 4312C (Australia, Canada, Domestic, England, Europe) | ALL | |
| 3 | 70578-89 | BOOT, starter | ALL | |
| 4 | BA0409.4Z | WASHER, star | ALL | |
| 5 | B0613.1Z | WASHER | ALL | |
| 6 | C0032.02A8 | BOOT, battery terminal | ALL | |
| 7 | C0041.02A8 | BRACKET, battery strap | ALL | |
| 8 | D0600.2CZ | LOCKNUT | ALL | |
| 9 | Y0101.02A8 | PAD, battery (4) | ALL | Feb 2017 |
| 10 | Y0103.02A8 | STRAP, battery (rubber) | ALL | |
| 11 | Y0317.02A8 | CABLE, positive | ALL | |
| 12 | Y0321.02A8 | CABLE, negative | ALL | |
| 13 | Y0024.02A8 | BATTERY, w/ 4312C & label (Japan) | ALL |
