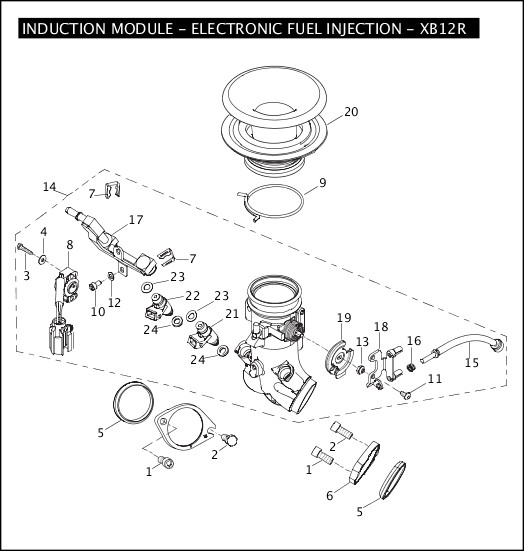

Index No.	Part No.	Description	Models	Obselete
1	3275	SCREW (2)	XB12R
2	3987	BOLT (2)	XB12R
3	3323Y	SCREW (2)	XB12R	Nov 2014
4	6090Y	WASHER, flat (2)	XB12R	Jul 2015
5	26995-86B	SEAL, intake manifold (2)	XB12R
6	27009-86A	MOUTNING FLANGE, front intake	XB12R
	27010-86A	MOUNTING FLANGE, rear intake (not illustrated)	XB12R
7	29534-99Y	CLIP, injector (2)	XB12R
8	29537-99Y	THROTTLE POSITION SENSOR (used w/ P0803.1AA)	XB12R
	P0279.3AA	THROTTLE POSITION SENSOR (used w/ P0803.1AAA)	XB12R	Jul 2015
9	C0054.1AA	CLAMP, wire spring, 49mm	XB12R	Feb 2017
10	CA0024.2A8	SCREW	XB12R	Nov 2014
11	CA0026.02A8	SCREW (2)	XB12R	Jul 2015
12	CB0015.2A8	WASHER, flat	XB12R	Nov 2014
13	CD0012.02A8	NYLOCK	XB12R
14	P0803.1AA	THROTTLE BODY MANIFOLD ASSEMBLY (use P0803.1AAA)	XB12R
	P0803.1AAA	THROTTLE BODY MANIFOLD ASSEMBLY (replaces P0803.1AA)	XB12R	Nov 2014
15	P0011.02A8	ADJUSTER, idle	XB12R
16	P0012.02A8	SPRING, idle adjuster	XB12R
17	P0013.1AA	FUEL RAIL	XB12R	Nov 2014
18	P0023.02A8	BRACKET, cable	XB12R	Nov 2014
19	P0024.02A8	THROTTLE LEVER ASSEMBLY	XB12R	Nov 2014
20	P0025.1AAA	VELOCITY STACK, 49mm	XB12R	Jul 2015
21	P0026.1AA	FUEL INJECTOR, front	XB12R	Jul 2015
22	P0027.1AA	FUEL INJECTOR, rear	XB12R	Jul 2015
23	P0028.02A8	O-RING, fuel injector inlet (2)	XB12R
24	P0029.02A8	O-RING, fuel injector outlet (2)	XB12R
