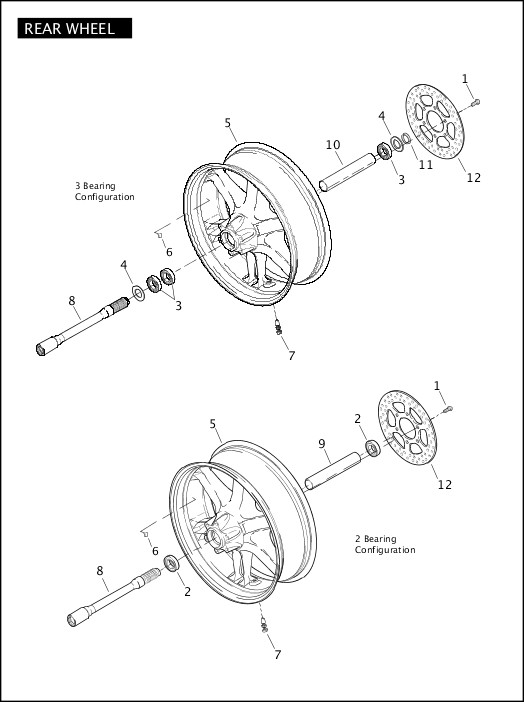

REAR WHEEL

Part Image Missing
Index No. Part No. Description Models Obselete
1 CA0005.9A7 BOLT, rear brake rotor (6) ALL
2 E0005.02A8B BEARING (used w/ G0309.02A8YJ) (2) ALL
3 E0005.5AK BEARING (used w/ G1309.02A8YJ) (3) XB9R
4 EA0002.5AK SEAL, dust (used w/ G1309.02A8YJ) (2) XB9R
5 G0309.02A8AYBR WHEEL ASSEMBLY, rear w/ bearings, spacer & valve stem (translucent amber) XB12R
G0309.02A8YJ WHEEL ASSEMBLY, rear w/ bearings, spacer & valve stem (sky white) (use G1309.02A8YJ) XB9R
G1309.02A8YJ WHEEL ASSEMBLY, rear w/ 3, 4, 8, 10 & 11 (sky white) (replaces G0309.02A8YJ) XB9R
6 G0312.8 WEIGHT, wheel ALL
Jul 2015
7 G0313.02A8 VALVE STEM ASSEMBLY, w/ cap ALL
8 G0321.5AK AXLE, rear ALL
9 G0323.02A8 SPACER (used w/ G0309.02A8YJ) ALL
10 G0323.5AK SPACER (used w/ G1309.02A8YJ) XB9R
>
