Firebolt Models Parts Catalog
2004

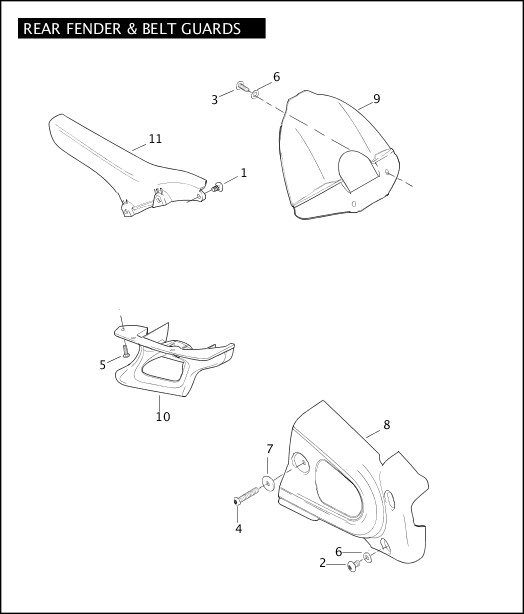

REAR FENDER & BELT GUARDS
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0404.10CSS | SCREW, upper guard fastener (3) | ALL | Oct 2015 |
| 2 | AA0406.11CVB | SCREW, sprocket cover (2) | ALL | |
| 3 | AA0406.11CXVB | SCREW, rear inner fender (2) | ALL | |
| 4 | AA0412.11CXVB | SCREW, sprocket cover | ALL | |
| 5 | AN1005.3CBBL | SCREW, lower guard fastener (3) | ALL | Nov 2014 |
| 6 | BA0409.6BL | WASHER (6) | ALL | |
| 7 | CB0012.02A8 | WASHER | ALL | Feb 2017 |
| 8 | G0555.1AAA | SPROCKET COVER, front | ALL | Feb 2017 |
| 9 | M0550.02A8 | FENDER, rear inner | ALL | |
| 10 | M0560.1AA | BELT GUARD, lower | ALL | Nov 2014 |
| 11 | M0570.1AA | BELT GUARD, upper | ALL | Nov 2014 |
