House of BUELL

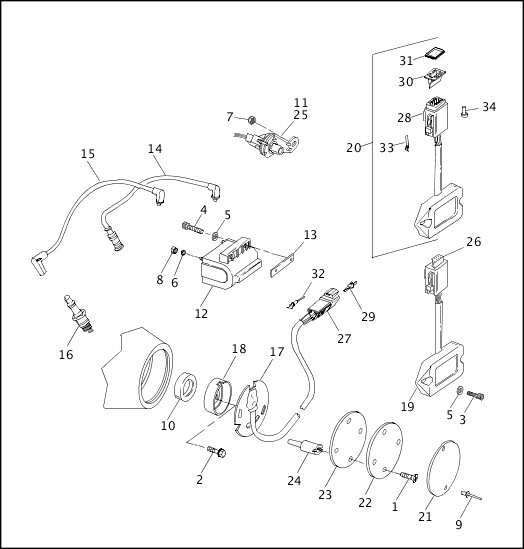

Index No.	Part No.	Description	Models	Obselete
1	1601	SCREW (2)	ALL
2	2611C	BOLT	ALL
3	AA0406.2CBZ	SCREW (2)	ALL
4	AA0408.2CBZ	SCREW (2)	ALL	Feb 2010
5	B0613.1Z	WASHER (4)	ALL
6	BN1006.4Z	LOCKWASHER (2)	ALL	Feb 2010
7	DA0500.2CZ	LOCKNUT	ALL
8	7638	NUT (2)	ALL
9	8699	POP RIVET (2)	ALL
10	11124	SEAL	ALL
11	26558-84	VACUUM SWITCH	ALL
12	31614-83A	IGNITION COIL	ALL
13	31727-85	PLATE, ignition coil mounting	ALL
14	31986-86A	CABLE, spark plug, front	ALL
15	31995-83	CABLE, spark plug, rear	ALL
16	32362-04	SPARK PLUG, No. 6R12 (2)	ALL
17	32400-94A	SENSOR ASSEMBLY, w/ terminal pins	ALL
18	32402-83	TRIGGER ROTOR	ALL
19	32433-91A	IGNITION MODULE, w/ connector assembly (1995 49 state models)	S2 1995
20	32465-95B	IGNITION MODULE, w/ connector assembly (California & 49 state models)	ALL
21	32550-94Y	COVER, timer	ALL
22	T0115.8Q	INNER COVER	ALL	Apr 2010
23	32591-80	GASKET, ignition	ALL
24	32606-82	STUD, timer plate (2)	ALL
25	26570-84	VACUUM HOSE	ALL
26	74536-77A	PIN, ignition module (7)	S2 1995
27	72103-94BK	RECEPTACLE, three pin (black)	ALL
28	72118-94BK	PLUG, eight-way (black)	S2 1996, S2T
29	72143-94	SECONDARY LOCK, three pin receptacle (black)	ALL
30	72158-94	LOCK, plug (eight-way)	S2 1996, S2T
31	72178-94	SEAL, front (eight-way plug)	S2 1996, S2T
32	72190-94	TERMINAL, pin (3)	ALL
33	72191-94	TERMINAL, socket (7)	S2 1996, S2T
34	72195-94	SEAL PIN	S2 1996, S2T
